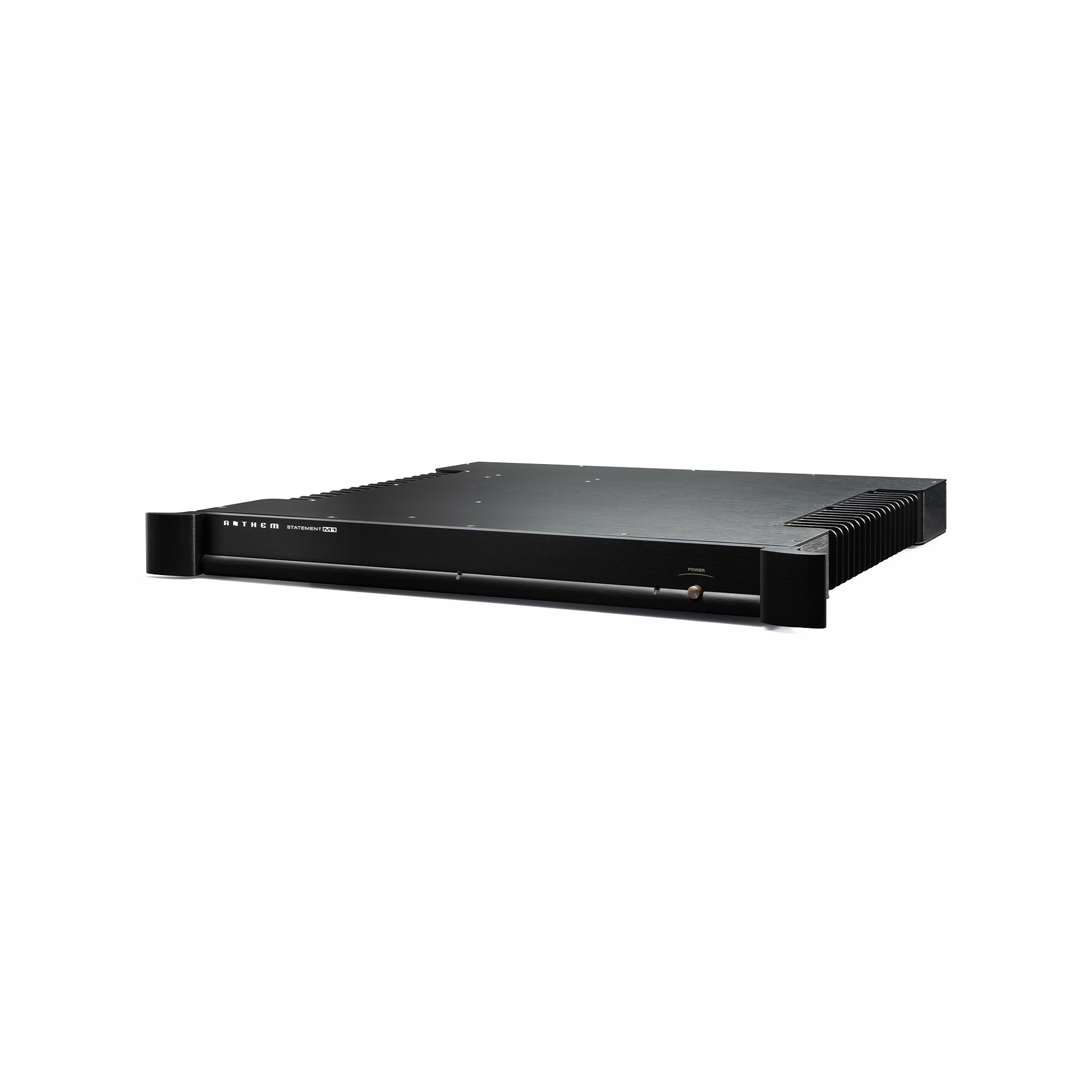

Anthem Statement M1 Monoblock Power Amplifier (Black) overview
The Anthem Statement M1 is a high-output monoblock amplifier for demanding loudspeakers and reference cinema channels. Its Class D topology, Advanced Load Monitoring and compact 1U chassis provide very high continuous power without placing digital conversion in the analogue signal path.
Key features
- Single-channel monoblock architecture
- Compact 1U rack height
- Advanced Load Monitoring protection
- Stable operation into difficult loudspeaker loads
- Balanced XLR and unbalanced RCA inputs
- Designed and manufactured in Canada
Technical specifications
| Channels | 1 |
|---|---|
| Output into 8Ω | 1,000W RMS |
| Output into 4Ω | 2,000W RMS |
| Output into 2Ω | 2,400W RMS |
| Frequency response | 20Hz–20kHz, ±0.1dB into 8Ω/4Ω |
| Signal-to-noise ratio | 113dB, IEC-A referenced to 1,000W |
| Input impedance | 10kΩ RCA; 20kΩ XLR |
| Voltage gain | 29dB |
| Damping factor | Above 1,400 at 20Hz |
System design considerations
This component should be selected as part of the complete signal, amplification, loudspeaker and room plan. Confirm channel requirements, loudspeaker impedance, cable connections, ventilation and control compatibility before installation.
System matching and support
Mirror Edge Networks can confirm loudspeaker loading, channel allocation, source compatibility, ventilation, rack space and control-system integration before supply. Displayed online prices include VAT; free nationwide delivery is available, typically within 3–5 business days where supplier stock is available.
