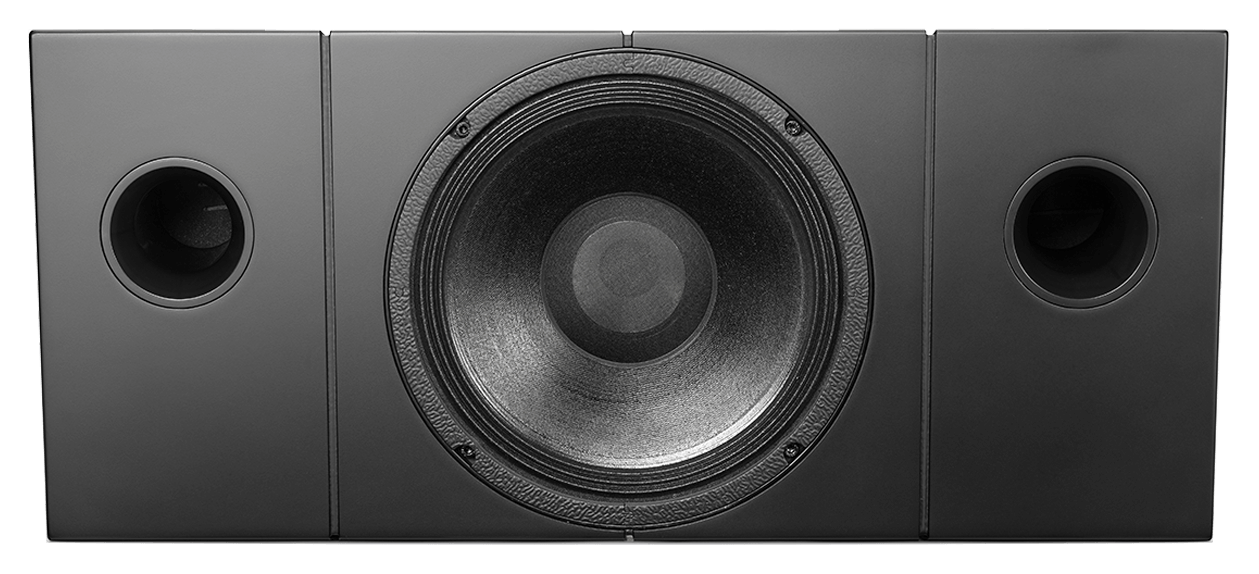

ASCENDO THE10 PASSIVE LED PHANTOM overview
The ASCENDO THE10 PASSIVE LED PHANTOM is passive point-source cinema loudspeaker engineered for controlled directivity, high dynamic capability and integration into professionally designed immersive audio systems. Product selection, amplification, DSP, placement and acoustic integration should be determined as part of the complete room design.
Key benefits
- Engineered specifically for high-performance cinema and immersive audio
- Professional system matching for output, coverage and room volume
- Designed for integration with ASCENDO amplification, DSP and bass systems
- Installation planning available from Mirror Edge Networks
Technical specifications
| Speaker Type | 10” time-coherent point-source coaxial |
|---|---|
| Principle | Vented |
| Passive | Active | Passive |
| Woofer | 10” woofer |
| Tweeter | 1 ⅜” voice coil diameter, compression driver |
| SPL (Half Space 2pi) | Measured Data 120 dB (Cont.) / 130 dB (Peak) |
| Frequency Range | Measured Data (Without DSP) 100 Hz – 20 kHz / -3 dB |
| Power Handling | 500 W |
| Efficiency | 97 dB / 1 W/m 2 pi |
| Impedance | 8 Ω |
| Directivity Horizontal x Vertical in deg° | 85° x 85° |
| Input Terminal | 4-conductor Phoenix 12 AWG (3.3 mm²) |
| Dimensions (W/H/D) mm (Without Grille) | 630 | 270 | 171.3 (With grille: 178.2) |
| Weight | 29.76 lbs | 13.5 kg |
System design and installation
This product requires appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, availability and the complete system configuration before supply.
Mirror Edge Networks support
ASCENDO products are supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
