Description

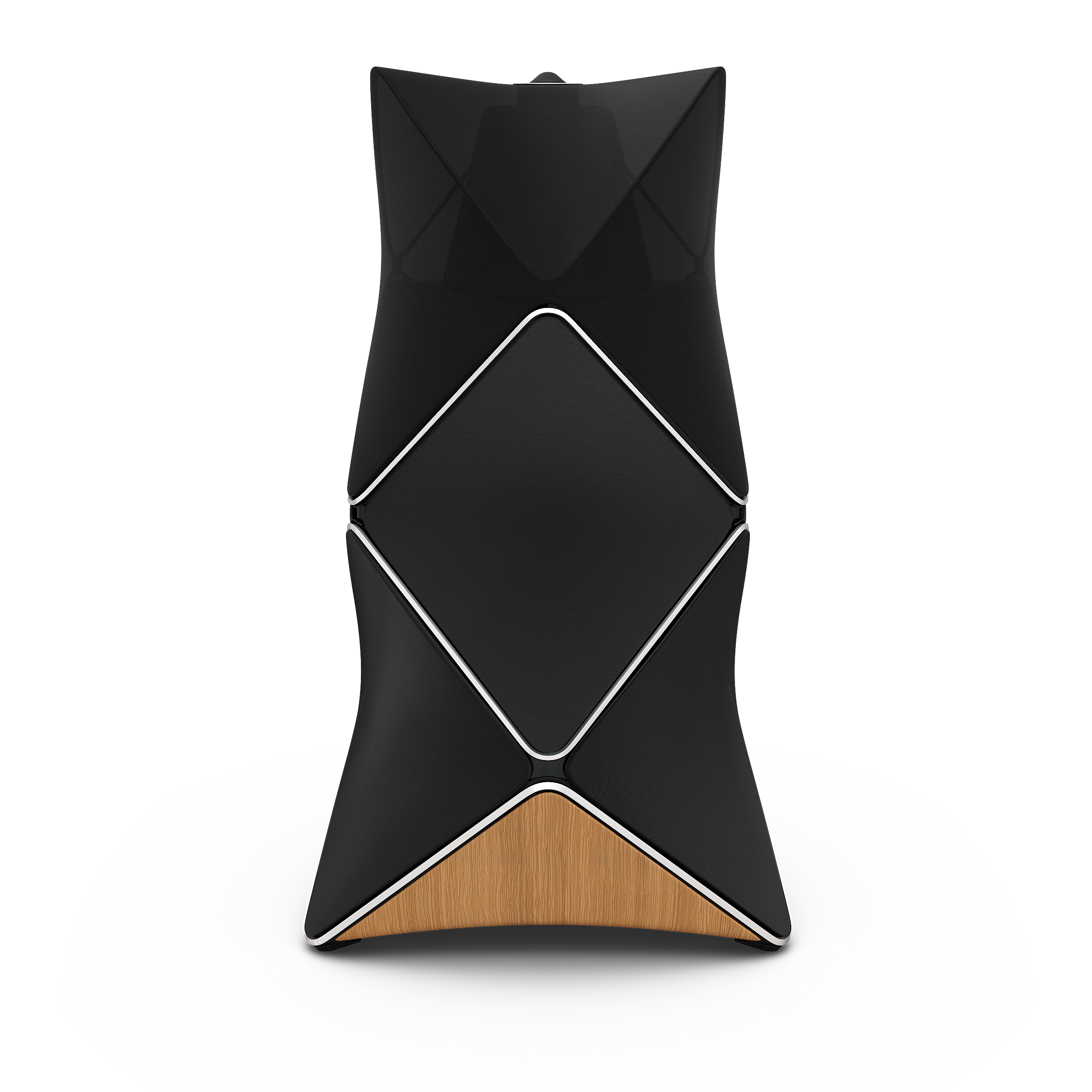

Bang & Olufsen Beolab 90 overview
Sculpture of sound.
Experience the world's most powerful audio. Beolab 90 delivers ultra high fidelity sound, perfect for the ultimate home theater system or music listening.
Key features
- Advanced Sound Features: Adaptive Bass Linearization Advanced Active Room Compensation Beam Direction Control (5 sides) Beam Width Control Thermal Protection
- Speaker Configuration: Per Speaker: 7 x 1″” Scan-Speak Illuminator tweeter 7 x 4 ½”” Scan-Speak Illuminator mid-range 3 x 10″” Scan-Speak Discovery woofer 1 x 13″” Scan-Speak Revelator front woofer
- Recommended Room Size: 30-200 m² 300-2000 ft²
- Wireless Connections: Wireless Power Link (24bit/48kHz) WiSA (24bit/96kHz)
- Materials: Aluminium Fabric Wood
Technical specifications
| Technical overview | Beolab 90 sports no less than 18 premium drivers, 14 channels of ICEpower amplifiers and 4 additional class D amplifiers. 8,200 total watts of musical power and precision – per unit. |
|---|---|
| Sound — Recommended Room Size | 30-200 m² 300-2000 ft² |
| Sound — Speaker Configuration | Per Speaker: 7 x 1″” Scan-Speak Illuminator tweeter 7 x 4 ½”” Scan-Speak Illuminator mid-range 3 x 10″” Scan-Speak Discovery woofer 1 x 13″” Scan-Speak Revelator front woofer |
| Sound — Amplifier | Per Speaker: 7 x Bang & Olufsen ICEpower AM300-X for tweeter 7 x Bang & Olufsen ICEpower AM300-X for mid-range 3 x Heliox AM1000-1 for woofer 1 x Heliox AM1000-1 for front woofer |
| Sound — Frequency Range | <12 – >43.000 Hz |
| Sound — Maximum Sound Pressure Level (SPL) @1m | Per pair: 126 dB SPL |
| Sound — Bass Capability | Per pair: 118 dB SPL |
| Sound — Advanced Sound Features | Adaptive Bass Linearization Advanced Active Room Compensation Beam Direction Control (5 sides) Beam Width Control Thermal Protection |
| Design — Designer | Noto GmbH |
| Design — Materials | Aluminium Fabric Wood |
| Design — Dimensions | 73.5 W x 125.3 H x 74.7 D cm |
| Design — Weight | Per Speaker: 137 kg |
| Power — Power supply | 100-240V 50/60Hz mains cable |
| Connectivity — Wireless Connections | Wireless Power Link (24bit/48kHz) WiSA (24bit/96kHz) |
| Connectivity — Physical Connections | Primary Speaker: 1 x RCA (L/R) 1 x MIC / IR 1 x Power Link (RJ45) 1 x S/P DIF (24 bit / 192 kHz) 1 x XLR (L/R) (fully balanced) 1 x Optical (24 bit / 96 kHz) 1 x USB-B (Audio) (24 bit / 192 kHz) 1 x USB-A 2 x Digital Power Link 1 x Digital Power Link / Ethernet 1 x Power Secondary Speaker: 1 x USB-B (Audio) 1 x USB-A 3 x Digital Power Link 1 x Power |
Official Bang & Olufsen product documentation
System design considerations
Confirm room size, placement, power, network connectivity, source compatibility, mounting requirements, finish and integration with other Bang & Olufsen products before ordering.
Request a quote
Bang & Olufsen products are supplied on an enquiry basis. Mirror Edge Networks can confirm current South African availability, configuration, finishes, system compatibility and installation requirements. Public pricing is intentionally not displayed.
