Description

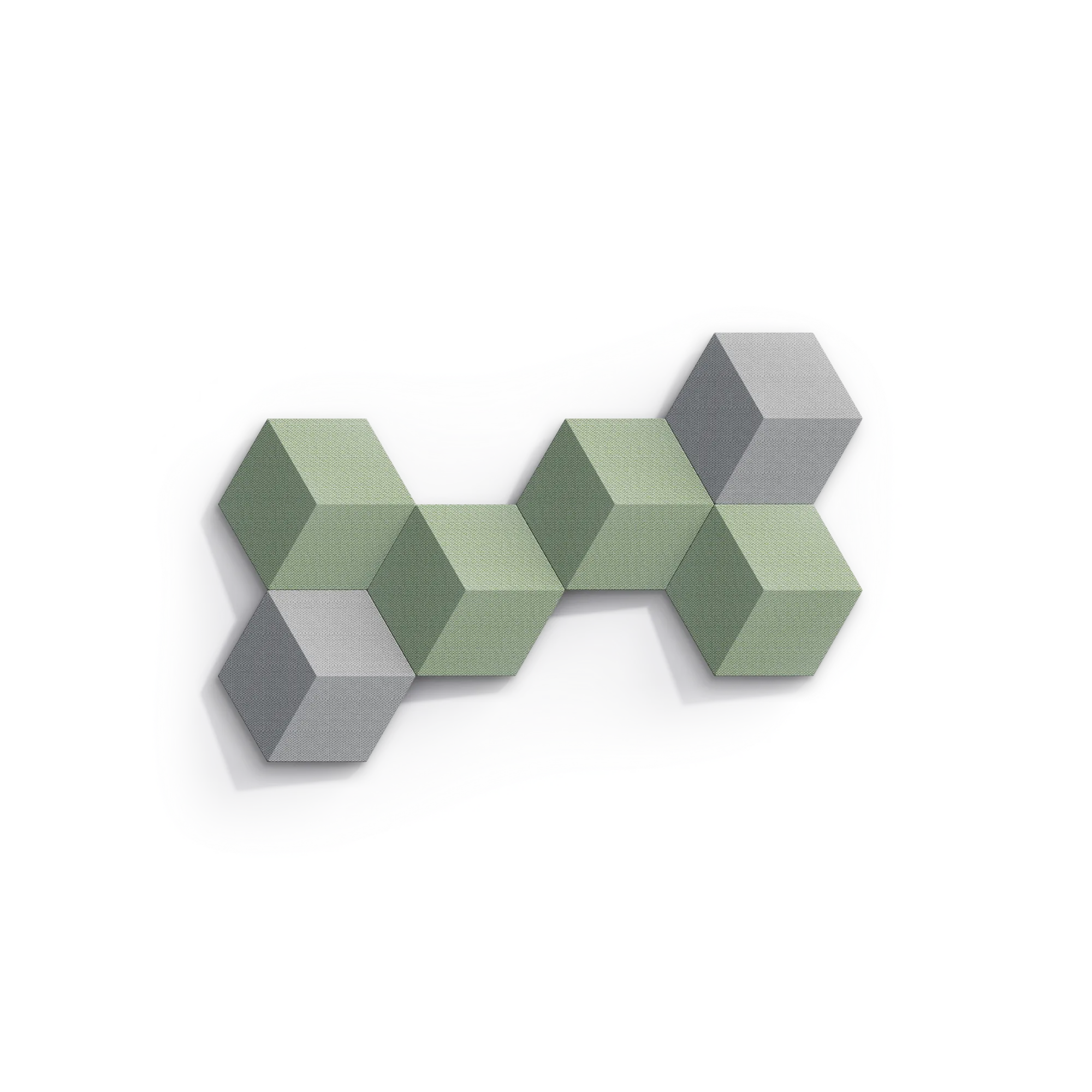

Bang & Olufsen Beosound Shape overview
Wall-mounted modular speakers. Designed by you.
Customisable wall-mounted architectural speaker system in Bang & Olufsen's iconic Hexagonal design. Uniting sound and art in your home.
Key features
- Advanced Sound Features: Adaptive Bass Linearization Thermal Protection
- Streaming Services: Apple AirPlay Spotify Connect Google Cast TIDAL Connect B&O Radio Deezer QPlay 2.0
- Speaker Configuration: Per Speaker Tile: 1 x ¾” tweeter 1 x 5 ¼” woofer
- Recommended Room Size: 20-100 m²
- Materials: Textile Polymer
Technical specifications
| Technical overview | Kitchen? Executive boardroom? Public restaurant? With the vast colour choices and modular design concept, Beosound Shape can be customised to match and elevate any living space. |
|---|---|
| Sound — Recommended Room Size | 20-100 m² |
| Sound — Speaker Configuration | Per Speaker Tile: 1 x ¾” tweeter 1 x 5 ¼” woofer |
| Sound — Amplifier | Per Amplifier: 8 x 80 Watt class D Maximum speakers per amplifier: 4 |
| Sound — Frequency Range | 30 – 22.000 Hz (8 tiles set up) |
| Sound — Maximum Sound Pressure Level (SPL) @ 1 m | 105 dB (8 tiles set up) |
| Sound — Bass Capability | 89dB (SPL) (8 tiles set up) |
| Sound — Advanced Sound Features | Adaptive Bass Linearization Thermal Protection |
| Design — Designer | Øivind Alexander Slaatto |
| Design — Materials | Textile Polymer |
| Design — Dimensions | 36.4 W x 32.0 H x 11.1 D cm (1 Tile) Maximum Amplifier Tiles: 10 Maximum Speaker Tiles: 44 Acoustic Damper Tiles: unlimited |
| Design — Weight | Speaker Tile: 1.9 kg + 0.4 kg (fabric cover) Amplifier Tile: 2.0 kg + 0.4 kg (fabric cover) Damper Tile :0.51 kg + 0.4 kg (fabric cover) |
| Power — Power supply | 100-240V 50/60Hz mains cable |
| Connectivity — Bluetooth version | Bluetooth 5.3 |
| Connectivity — Bluetooth Codecs | Android: SBC iOS: SBC, AAC |
| Connectivity — Wi-Fi | Dual-Band Wi-Fi (2.4 & 5 GHz) IEEE 802.11 b/g/a/n/ac/ax |
| Connectivity — Streaming Services | Apple AirPlay Spotify Connect Google Cast TIDAL Connect B&O Radio Deezer QPlay 2.0 |
| Connectivity — Beolink Multiroom | Seamlessly connect multiple Bang & Olufsen speakers to expand your music experience. |
| Connectivity — Physical Connections | Speaker Tile: 1 x Speaker 4-Wire Input Amplifier Tile: 4 x Speaker 4-Wire Output 1 x Optical-In 1 x Power Link (RJ45) 1 x Comm In (Amplifier Input) 1 x Comm Out (Amplifier Output) 1 x USB-B 1 x Power Beoconnect Core: 1 x Power 1 x USB-C (Digital Performance Output) 1 x HDMI eARC (for TV-integration) 1 x Ethernet 1 x COMM (for Beosound Shape) 1 x Powerlink (Stereo) 1 x Line-In |
| Connectivity — Remote Controls | Bang & Olufsen App Beoremote One BT Beoremote Halo |
Official Bang & Olufsen product documentation
System design considerations
Confirm room size, placement, power, network connectivity, source compatibility, mounting requirements, finish and integration with other Bang & Olufsen products before ordering.
Request a quote
Bang & Olufsen products are supplied on an enquiry basis. Mirror Edge Networks can confirm current South African availability, configuration, finishes, system compatibility and installation requirements. Public pricing is intentionally not displayed.
