Description

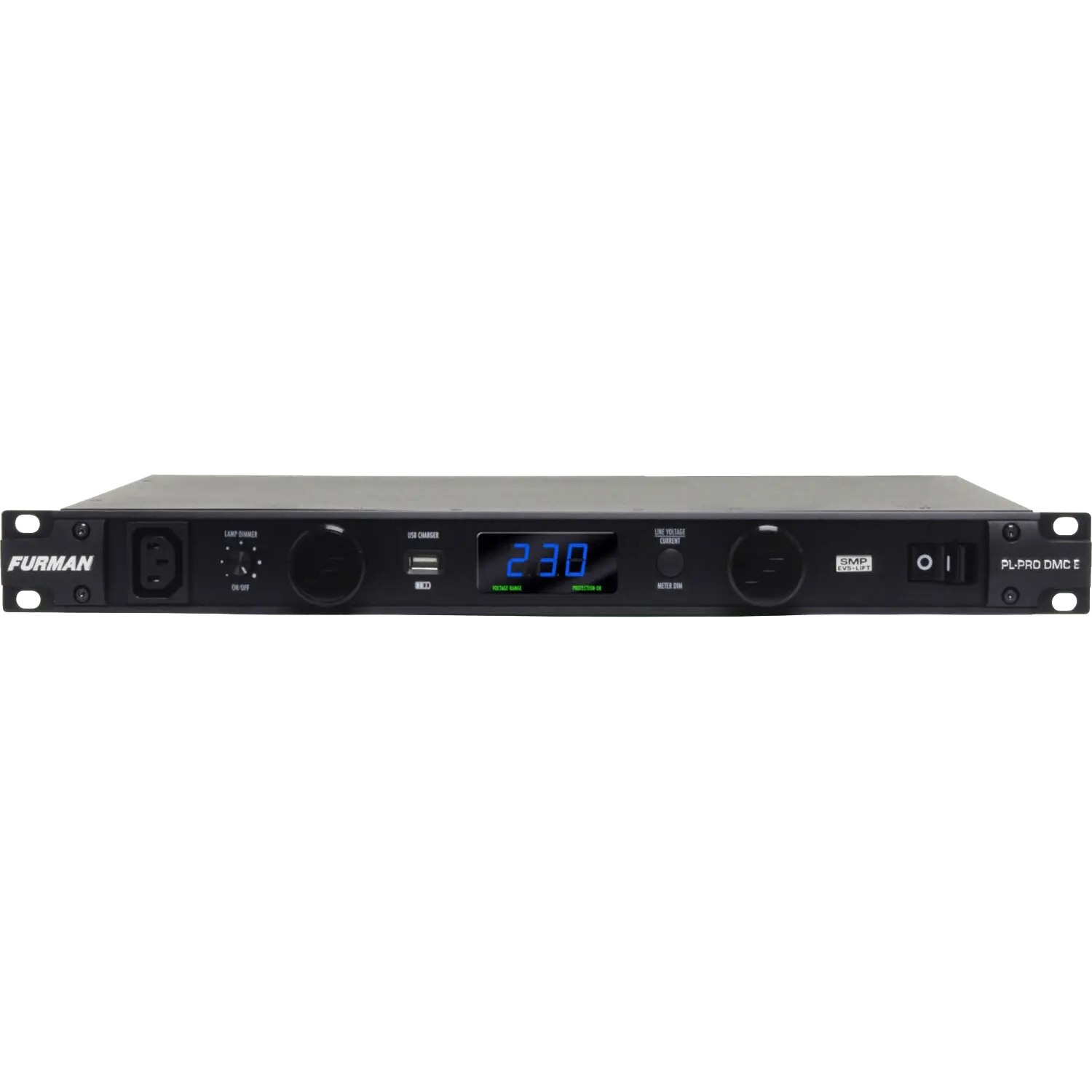

Furman PL-PRO-DMCE overview
The Furman PL-PRO-DMCE is a professional 16-amp rack power conditioner with real-time voltage and current metering, equipment illumination and advanced protection.
Key features
- SMP surge protection, LiFT noise filtration and EVS voltage protection
- Digital voltmeter and true-RMS ammeter
- Dual retractable front-panel LED rack lights plus rear BNC lamp output
- Isolated outlet banks reduce inter-component interference
Technical specifications
| Product type | Professional rack power conditioner |
|---|---|
| Series | Classic Series 240V |
| Line voltage | 240 V AC |
| Current rating | 16 A |
| Operating voltage | 180–274 V AC |
| Over-voltage shutdown | Typically 275 V AC |
| Outlets | 11 total: 10 rear and one front |
| Noise attenuation | 10 dB at 10 kHz; 40 dB at 100 kHz; 50 dB at 500 kHz |
| Maximum surge current | 6,500 A |
| Response time | 1 nanosecond |
| Metering | Digital voltage and true-RMS current display |
| Dimensions | 482.6 × 44.45 × 266.7 mm (W × H × D) |
| Weight | 5.5 kg |
| Safety listing | CE |
| Warranty | 5-year limited warranty; authorised-dealer terms apply |
Official Furman product information
System design considerations
Final selection should account for equipment load, power and outlet requirements, wall construction, display size and VESA pattern, cable routing, ventilation, service access and professional installation. Confirm the current model revision and local compatibility before ordering.
Ordering and installation
The listed price is VAT inclusive. Mirror Edge Networks can also advise on display compatibility, wall construction, cable routing and professional installation.
