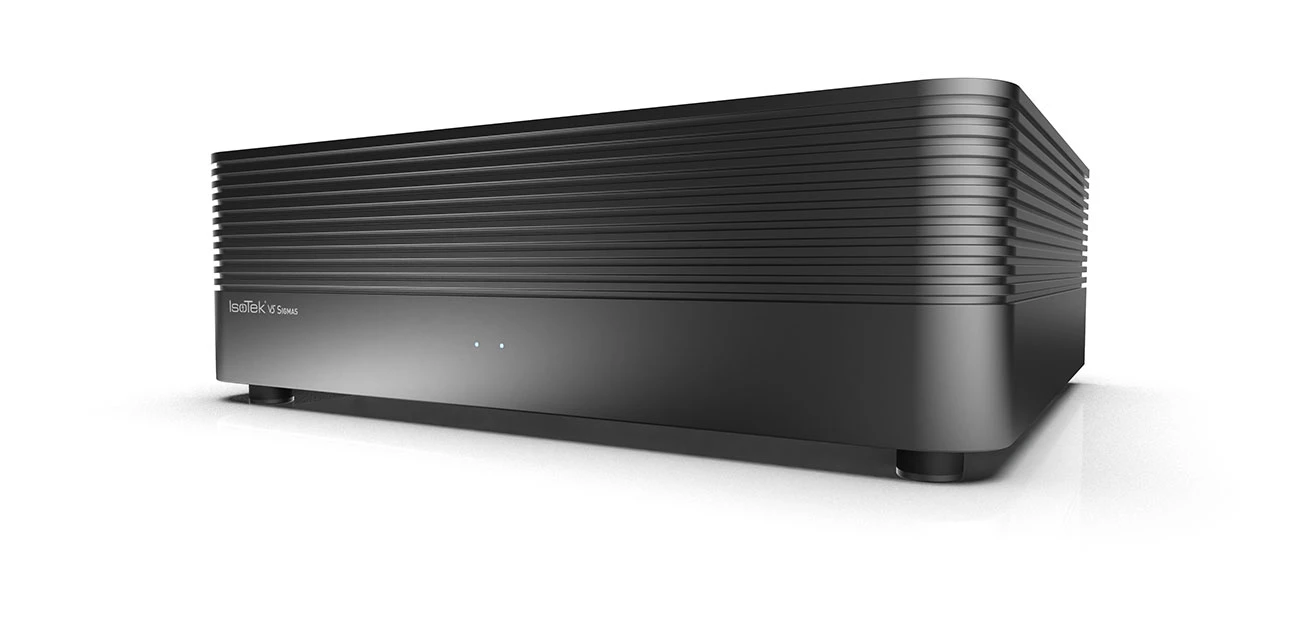

IsoTek V5 Sigmas overview
The IsoTek V5 Sigmas is a seven-outlet high-end power cleaner combining three high-current feeds with four medium-current feeds for a complete audio or AV system.
Key features
- Three high-current outlets use Direct-Coupled circuitry for amplifiers and subwoofers
- Four medium-current outlets serve source and control components
- A dedicated clean-power network is provided for every outlet
- High-capacity sequential protection plus System Link expansion
Technical specifications
| Product type | High-current system power cleaner |
|---|---|
| Series | V5 Select Series |
| Outlets | 7 plus System Link |
| Outlet formats | UK, EU, US, AU and CH versions |
| Mains inlet | 16 A IEC C20 |
| Mains voltage | 100–240 V / 50–60 Hz |
| Medium-current outlets | 4 × 10 A; 2,300 W total at 230 V |
| High-current outlets | 3 × 16 A; 3,680 W total at 230 V |
| System Link | One outlet |
| Surge protection | 121,500 A |
| Dimensions | 450 × 150 × 350 mm (W × H × D) |
| Weight | 15 kg |
| Supplied cable | IsoTek EVO3 Premier, 1.5 m |
Official IsoTek product information
System design considerations
Final selection should account for equipment load, power and outlet requirements, wall construction, display size and VESA pattern, cable routing, ventilation, service access and professional installation. Confirm the current model revision and local compatibility before ordering.
Request a quote
Public pricing is not shown for this specialist product. Mirror Edge Networks can confirm current South African availability, system suitability and installation requirements.
