Monitor Audio Anthra W15 overview

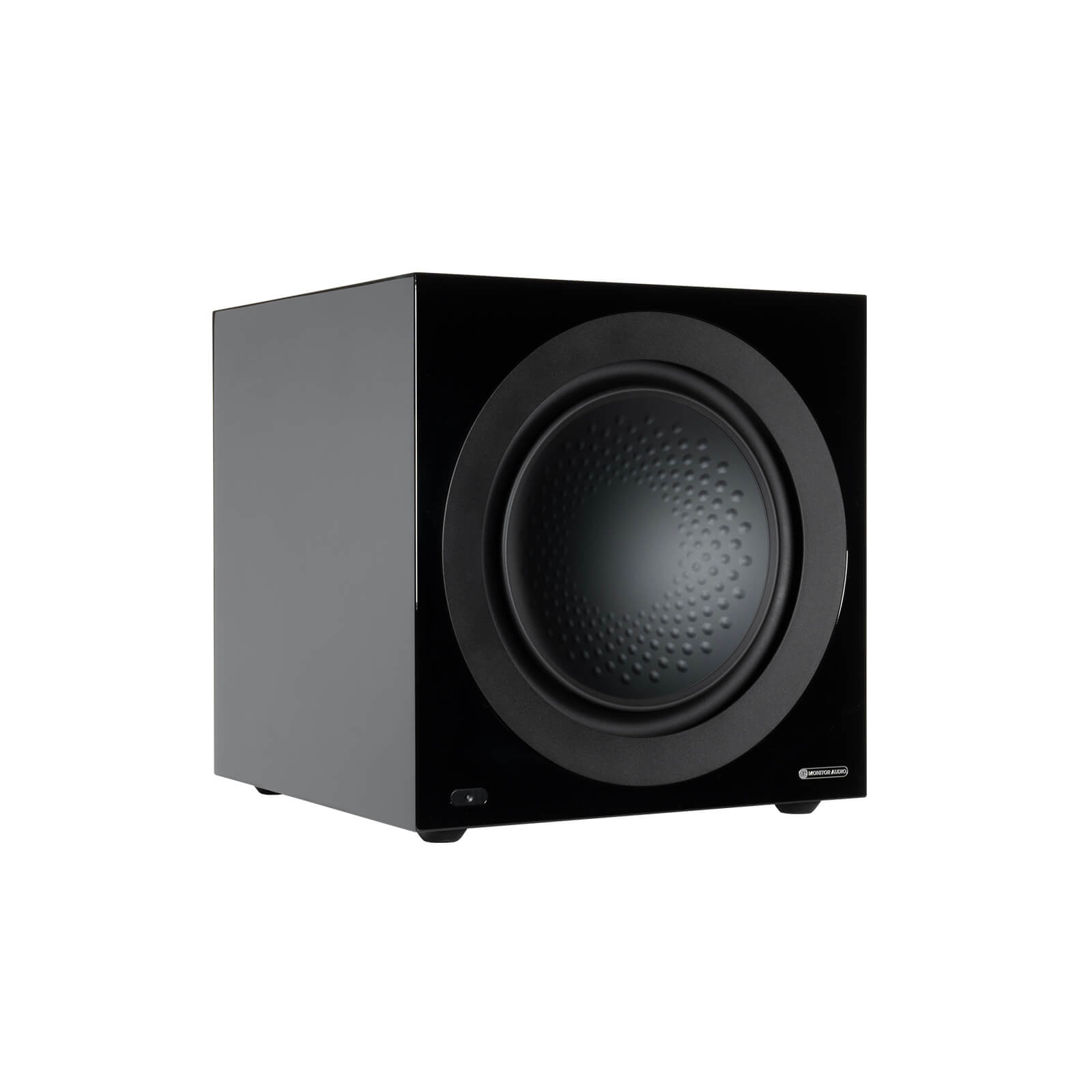

The Monitor Audio Anthra W15 is a powered subwoofer from Monitor Audio. Monitor Audio’s Anthra W15 is a formidable subwoofer featuring a 15” (38 cm) driver powered by a muscular 1,500 Watt amplifier. Mirror Edge Networks can confirm system matching, amplification, placement and room requirements before supply.
Key benefits
- Designed by Monitor Audio for detailed, dynamic music and cinema reproduction
- Controlled bass extension with system-specific setup and integration
- Suitable for professionally planned stereo or home cinema systems
- Product selection, installation planning and calibration support from Mirror Edge Networks
Technical specifications
| System Format | Active – Sealed Cabinet |
|---|---|
| Drive Unit Complement | 1x 15" (381 mm) High Linear-Excusion Triple Suspension Driver |
| Amplifier Classification | High-Efficiency Class-D |
| Lower Frequency Limit | -6dB @16Hz |
| Upper Frequency Limit | (LPF Off) -6dB @400Hz |
| Driver Excursion (pk-pk) | 50 mm |
| DSP | 28 Bit 50 MIPS Configuratable through MaestroUnite |
| Analogue Digital Conversion | Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals |
| Amplifier Output Power, 240Vac | Instantaneous: 2500 W* / Continuous short-term: 1400 W** |
| Amplifier Output Power, 120Vac | Instantaneous: 2500 W / Continuous short-term: 1400 W |
| LED UI Control | Brightness, On-Off |
| Phase Control | 0-360 Degrees measured at LPF Crossover |
| Low Pass Filter | 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct |
| Custom EQ | Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass) |
| Volume Level | Wide adjustable input gain to allow maximum output from a wide range of input signals |
| Inputs | Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE) / Mono/LFE Balanced XLR |
| Outputs | Stereo unbalanced outputs with unbuffered throughput from RCA Inputs / Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input |
| Mains Input Voltage | Universal Mains, 85-265VAC |
System design and installation
Final performance depends on appropriate amplification, placement, room acoustics and calibration. Mirror Edge Networks will confirm compatibility, finish availability and the complete system configuration before supply.
Mirror Edge Networks support
Monitor Audio is supplied on a Request Quote basis and prices are not displayed online. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and project requirements allow.
