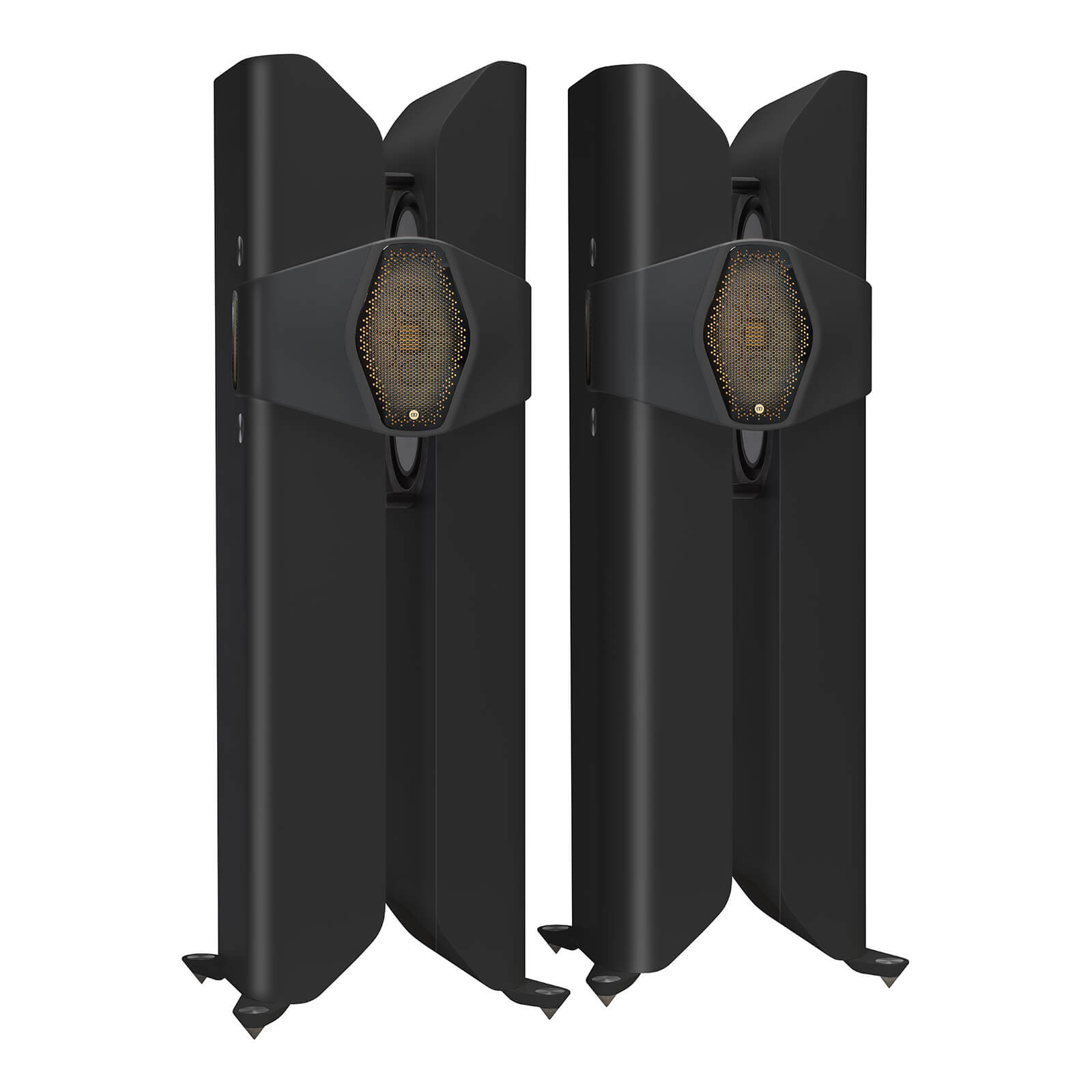

Monitor Audio Hyphn overview
The Monitor Audio Hyphn is a high-performance passive loudspeaker from Monitor Audio. Monitor Audio’s flagship Hyphn is a statement loudspeaker delivering unrivalled performance and introducing M-Array driver technology. Mirror Edge Networks can confirm system matching, amplification, placement and room requirements before supply.
Key benefits
- Designed by Monitor Audio for detailed, dynamic music and cinema reproduction
- Carefully engineered drivers, cabinet and crossover for coherent performance
- Suitable for professionally planned stereo or home cinema systems
- Product selection, installation planning and calibration support from Mirror Edge Networks
Technical specifications
| Sensitivity (2.83Vrms @ 1m) | 86 dB |
|---|---|
| Recommended Amplifier Power (RMS into 4 Ohm, Music Signal) | 200 – 1,600W |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 800 W |
| Nominal Impedance | 4 Ohm |
| Minimum Impedance (20 Hz to 20 kHz) | 3.5 Ohm @ 2.2 kHz |
| Drive Unit Complement | 4 x 8" RDT III Bass Driver / 6 x 2" RDT III Midrange Driver / 1 x MPD III Tweeter |
| Frequency Response (In-room, -6dB) | 18 Hz – 60 kHz |
| Maximum Peak SPL (single speaker @1m Z-Weighted) | 129 dB |
| System Format | 3-Way |
| Bass Alignment | Bass Reflex |
| Port Tuning Frequency | 25 Hz |
| Crossover Frequencies | 350 Hz, 3.7 kHz |
| External Dimensions (Inc. plinth) (H x W x D) | 1392 x 502 x 520 mm (54 13/16 x 19 3/4 x 20 1/2") |
| Weight (Inc. plinth, ex. packaging) | 106.9 kg (235 lbs 10.7 oz) |
| Warranty | 5 years |
System design and installation
Final performance depends on appropriate amplification, placement, room acoustics and calibration. Mirror Edge Networks will confirm compatibility, finish availability and the complete system configuration before supply.
Mirror Edge Networks support
Monitor Audio is supplied on a Request Quote basis and prices are not displayed online. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and project requirements allow.
