Description

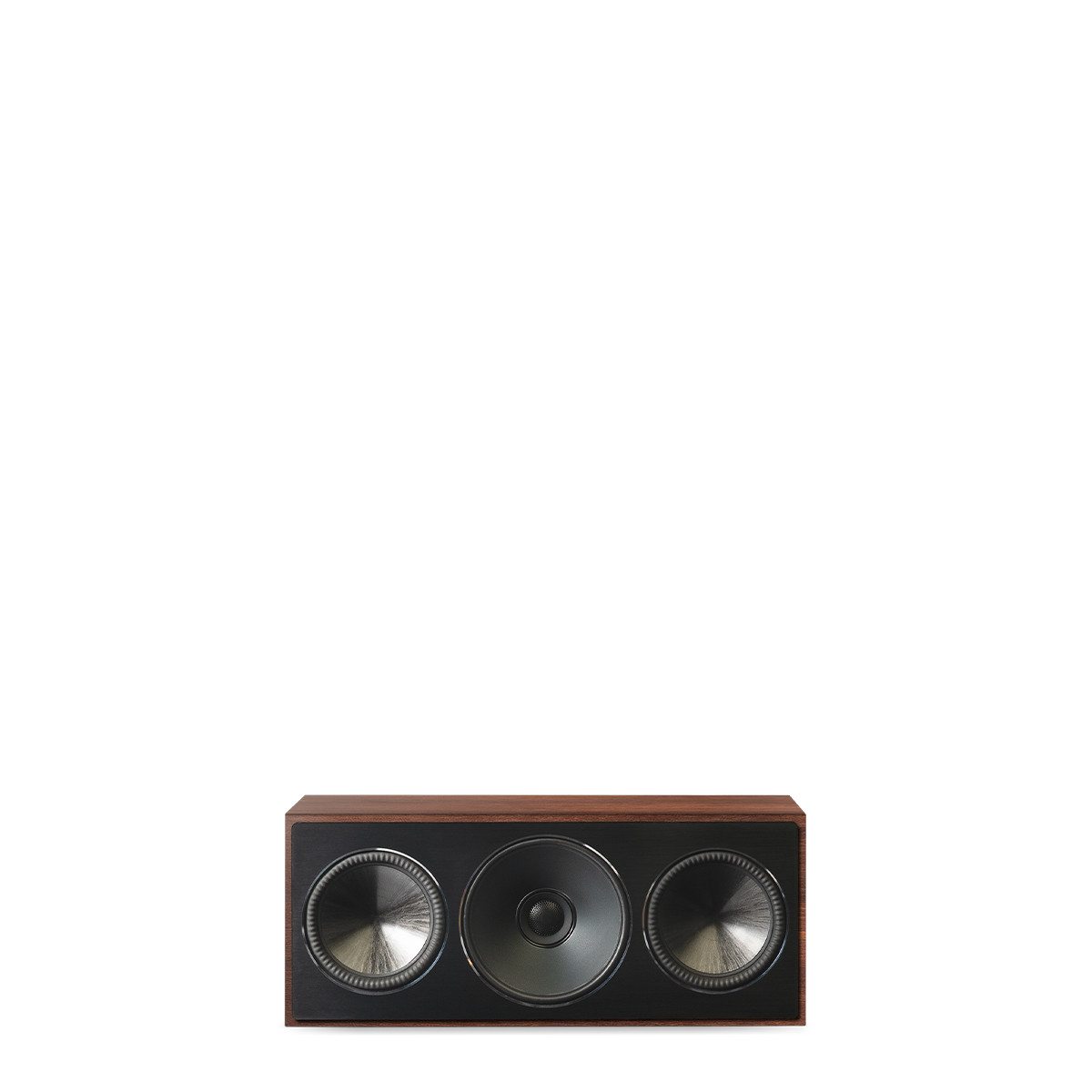

Paradigm Founder 70LCR overview
The Paradigm Founder 70LCR is a high-performance passive loudspeaker from Paradigm. 4-driver, 3 way LCR, sealed enclosure. Mirror Edge Networks can confirm system matching, amplification, placement and room requirements before supply.
Key benefits
- Engineered by Paradigm for detailed, dynamic music and cinema reproduction
- Carefully engineered drivers, enclosure and crossover for coherent performance
- Suitable for professionally planned stereo or home cinema systems
- Product selection, installation planning and calibration support from Mirror Edge Networks
Technical specifications
| DESIGN | 4-driver, 3 way LCR, sealed enclosure |
|---|---|
| CROSSOVER | 2nd order electro-acoustic at 2.2 kHz (tweeter), 2nd order @ 700 Hz (bass) |
| FREQUENCY RESPONSE ON-AXIS | ±2dB from 79 Hz – 23 kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±2dB from 79 Hz – 17 kHz |
| HIGH FREQUENCY DRIVER | Coaxial 1" (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled, Patent Pending Dual Gap Motor Structure |
| MIDRANGE FREQUENCY DRIVER | Coaxial 6” (152mm) AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 2” high-temp multi-layered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor |
| BASS FREQUENCY DRIVER | Two 5.5" (127mm Ultra-HighExcursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™), and a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former |
| SENSITIVITY ROOM / ANECHOIC | 92 dB / 89 dB |
| LOW FREQUENCY EXTENSION | 47 Hz (DIN) |
| SUITABLE AMPLIFIER POWER RANGE | 15 – 220 watts |
| MAXIMUM INPUT POWER | 150 watts |
| IMPEDANCE | Compatible with 8 ohms |
| DIMENSIONS HXWXD | 8” x 18.9” x 12.3” (20.4cm x 48cm x 31.3cm) |
| WEIGHT | 30 lbs (13.6 kg) each |
| FINISHES | Piano Black, Black Walnut, Midnight Cherry, Walnut |
System design and installation
Final performance depends on appropriate amplification, placement, room acoustics and calibration. Mirror Edge Networks will confirm compatibility, finish availability and the complete system configuration before supply.
Mirror Edge Networks support
Paradigm is supplied on a Request Quote basis and prices are not displayed online. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and project requirements allow.
