Paradigm Persona 9H overview

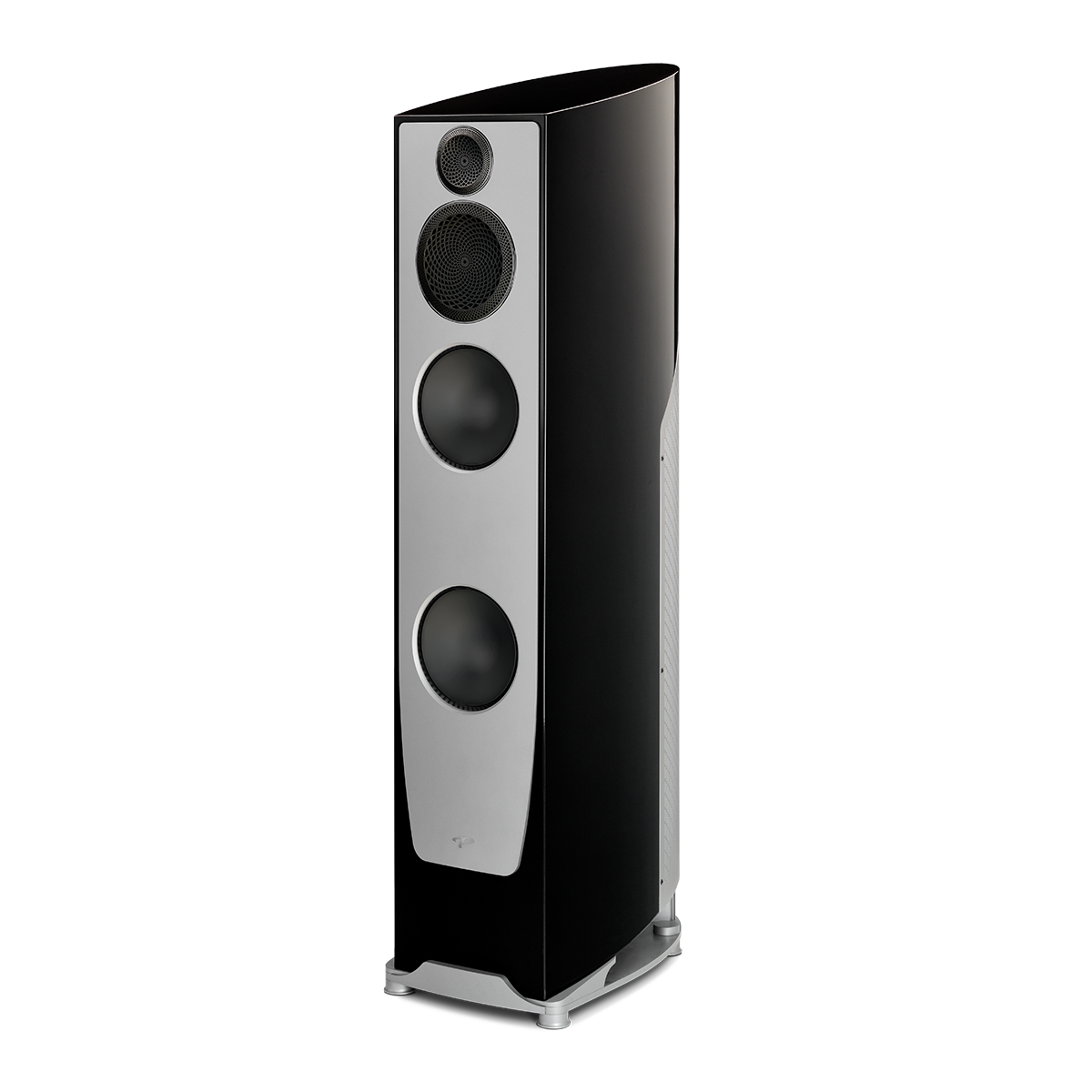

The Paradigm Persona 9H is a hybrid floorstanding loudspeaker with powered bass from Paradigm. Persona® 9H, the flagship of the Persona Series, is the most advanced, highest-performing loudspeaker we have ever designed. Mirror Edge Networks can confirm system matching, amplification, placement and room requirements before supply.
Key benefits
- Paradigm Persona reference engineering for premium music and cinema reproduction
- Beryllium driver technology designed for exceptional transparency and low distortion
- Premium cabinet construction and finish options for high-end residential systems
- Professional product selection, installation planning and calibration from Mirror Edge Networks
Technical specifications
| DESIGN | 6-driver, 3-1/2 way hybrid floorstanding with active bass acoustic suspension |
|---|---|
| CROSSOVER | 3rd order electro-acoustic at 2.4 kHz (tweeter/mid), 3rd order @ 400 Hz (mid/front bass), 2nd order @ 200 Hz (rear bass) |
| AMPLIFIER | Power measurements underway to ensure compliance with new FTC regulations |
| ROOM CORRECTION | Anthem Room Correction – ARC™, with included calibrated microphone |
| FREQUENCY RESPONSE ON-AXIS | ±2dB from 19 Hz – 45 kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±2dB from 19 Hz – 20 kHz |
| HIGH FREQUENCY DRIVER | 1" (25mm) Truextent® Beryllium dome, ferro-fluid damped / cooled, Perforated Phase-Aligning (PPA™) Tweeter Lens, Finite Element Analysis (FEA) optimized pole piece assembly |
| MIDRANGE FREQUENCY DRIVER | 7" (178mm) Truextent® Beryllium driver with Inverse Differential Drive Neodymium motor, Perforated Phase-Aligning (PPA™) Lens, SHOCK-MOUNT™ Isolation Mounting System, 1.5" high-temp voice coil |
| LOW FREQUENCY DRIVER | Four 8-1/2" (215 mm) ultra-high-excursion X-PAL™ drivers with Differential Drive motor, overmolded Active Ridge Technology (ART™) surrounds, SHOCK-MOUNT™ Isolation Mounting System, 1.5" high-temp dual voice coil |
| SENSITIVITY ROOM / ANECHOIC | 96 dB / 93 dB |
| LOW FREQUENCY EXTENSION | 15 Hz (DIN) |
| SUITABLE AMPLIFIER POWER RANGE | 15 – 500 watts |
| MAXIMUM INPUT POWER | 400 watts |
| IMPEDANCE | Compatible with 8 ohms |
| SPIKE/INSERT THREAD (THREAD SIZE/THREADS PER INCH) | 0.75"-16 |
| DIMENSIONS HXWXD | 51.75" × 11.875 × 20.5" (132cm × 30 × 52cm) |
| WEIGHT | 190 lbs. (86 kg) |
| FINISHES | High Gloss: Vanta Black, Harmony White. Metallic Gloss: Aria Blue, Sonic Silver |
System design and installation
Persona systems require appropriate amplification, placement, room acoustics and calibration. Mirror Edge Networks will confirm compatibility, finish availability and the complete system configuration before supply.
Mirror Edge Networks support
Paradigm Persona prices are not displayed online. Every Persona product is supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and project requirements allow.
