Description

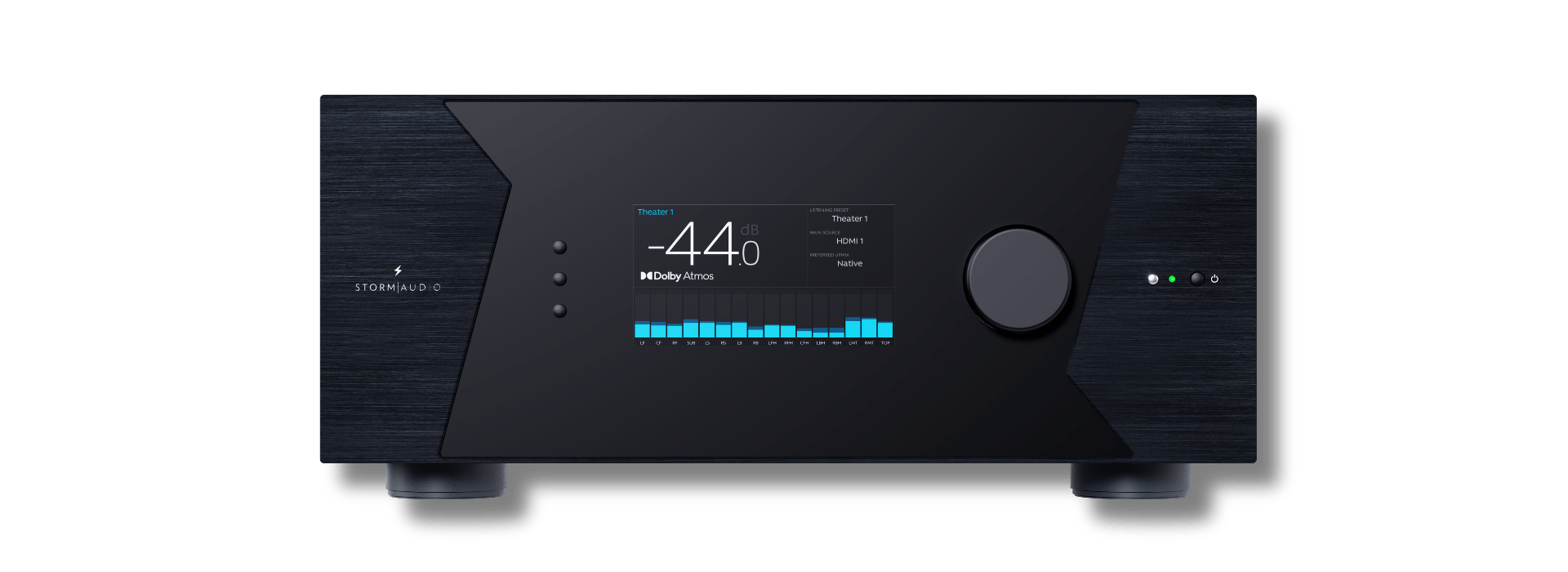

StormAudio ISR Fusion 20 overview
The StormAudio ISR Fusion 20 combines a 20-channel immersive processor with sixteen channels of onboard amplification. It is a compact foundation for ambitious private cinemas that need advanced room correction, expert bass management and flexible single-ended or bridged amplifier operation in one chassis.
Key benefits
- Dolby Atmos, Auro-3D, DTS:X Pro and IMAX Enhanced immersive processing
- Dirac Live Room Correction, Bass Control and Active Room Treatment
- StormAudio Expert Bass Management for multi-subwoofer and multi-way systems
- HDMI 2.1 / HDCP 2.3 matrix with 8K video support
- Flexible multi-theatre, multi-layout and multi-room configuration
- Web configuration, StormRemote applications and major automation drivers
Technical specifications
| Decoding / upmixing | 20 channels |
|---|---|
| Amplified outputs | 16 channels on binding posts |
| Line outputs | 4 balanced XLR channels |
| Amplifier modes | 16 single-ended; up to 10 single-ended plus 3 bridged |
| Power output | 150W / 300W single-ended; 500W bridged |
| Continuous / peak power | Up to 2,000W / 2,500W |
| HDMI inputs / outputs | 7 / 2 matrix, ARC/eARC |
| HDMI format | HDMI 2.1, HDCP 2.3, 40Gbps |
| Video support | 8K, 4K/120, HDR10+, Dolby Vision and HLG |
| Digital audio inputs | 3 optical and 3 coaxial S/PDIF |
| Analogue inputs | 4 RCA, configurable as 7.1 or stereo |
| Dimensions / weight | 44.2 × 49.1 × 17.6cm; 17kg |
| Warranty | 5 years |
System design considerations
Confirm channel count, output format, amplifier and loudspeaker compatibility, subwoofer strategy, network requirements, rack space, ventilation and control integration before installation.
System matching and support
Mirror Edge Networks can confirm channel allocation, loudspeaker loading, digital-audio compatibility, HDMI requirements, rack ventilation and control-system integration before supply. Displayed online prices include VAT; free nationwide delivery is available, typically within 3–5 business days where supplier stock is available.
