Description

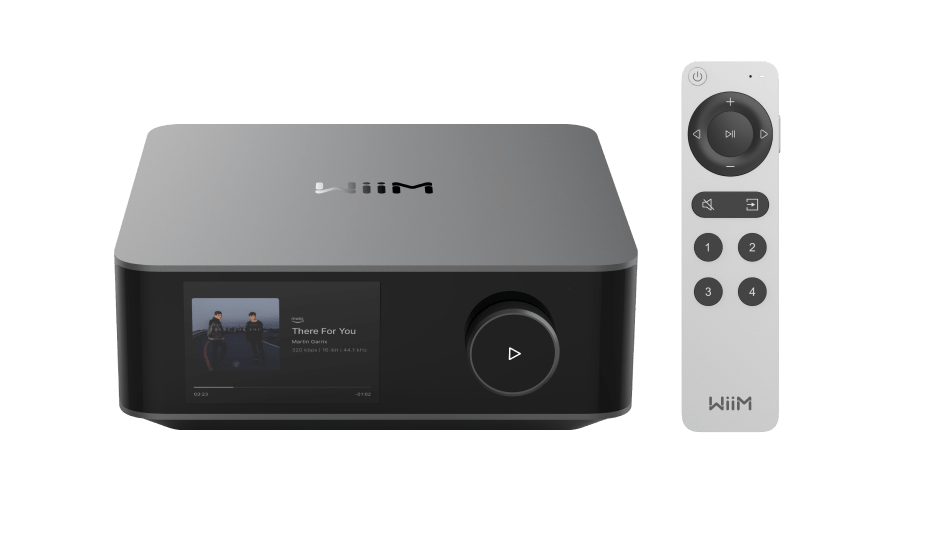

WiiM Amp Ultra overview
The WiiM Amp Ultra is an all-in-one network streaming amplifier that adds app control, multi-room playback, TV audio and room optimisation to passive loudspeakers.
Key features
- Compact Class-D amplification for a complete two-channel system
- High-resolution network playback and major connect protocols
- RoomFit room correction plus graphic and parametric EQ
- HDMI ARC, subwoofer management and smart-home integration
Technical specifications
| Product type | Network streaming integrated amplifier |
|---|---|
| Power output | 100 W/ch at 8 ohms; 200 W/ch at 4 ohms |
| DAC / amplification | ESS ES9039Q2M with dual TI TPA3255 amplification |
| Audio resolution | Up to 24-bit / 192 kHz playback |
| Network and Bluetooth | Wi-Fi 6, 10/100 Ethernet and Bluetooth 5.3 |
| Streaming protocols | Google Cast, Spotify Connect, TIDAL Connect, Amazon Music Casting, DLNA, Squeezelite and Roon Ready |
| Audio inputs | HDMI ARC, optical, analogue line and USB storage |
| Audio outputs | Passive-speaker terminals, subwoofer and USB audio |
| Room optimisation | RoomFit room correction; 10-band graphic and parametric EQ |
| Display / controls | 3.5-inch LCD touchscreen |
| Dimensions | 200 × 211 × 76 mm |
| Weight | 2.45 kg |
Official WiiM product information
System design considerations
Final selection should account for the existing amplifier or active loudspeakers, analogue and digital source requirements, television connection, network reliability, local storage, supported services and formats, equipment ventilation, automation and professional system setup.
Request a quote
Public pricing is intentionally not displayed for this range. Mirror Edge Networks can confirm current South African availability, configuration, finish, system compatibility and installation requirements.
