Wisdom Audio Insight Series L8i overview

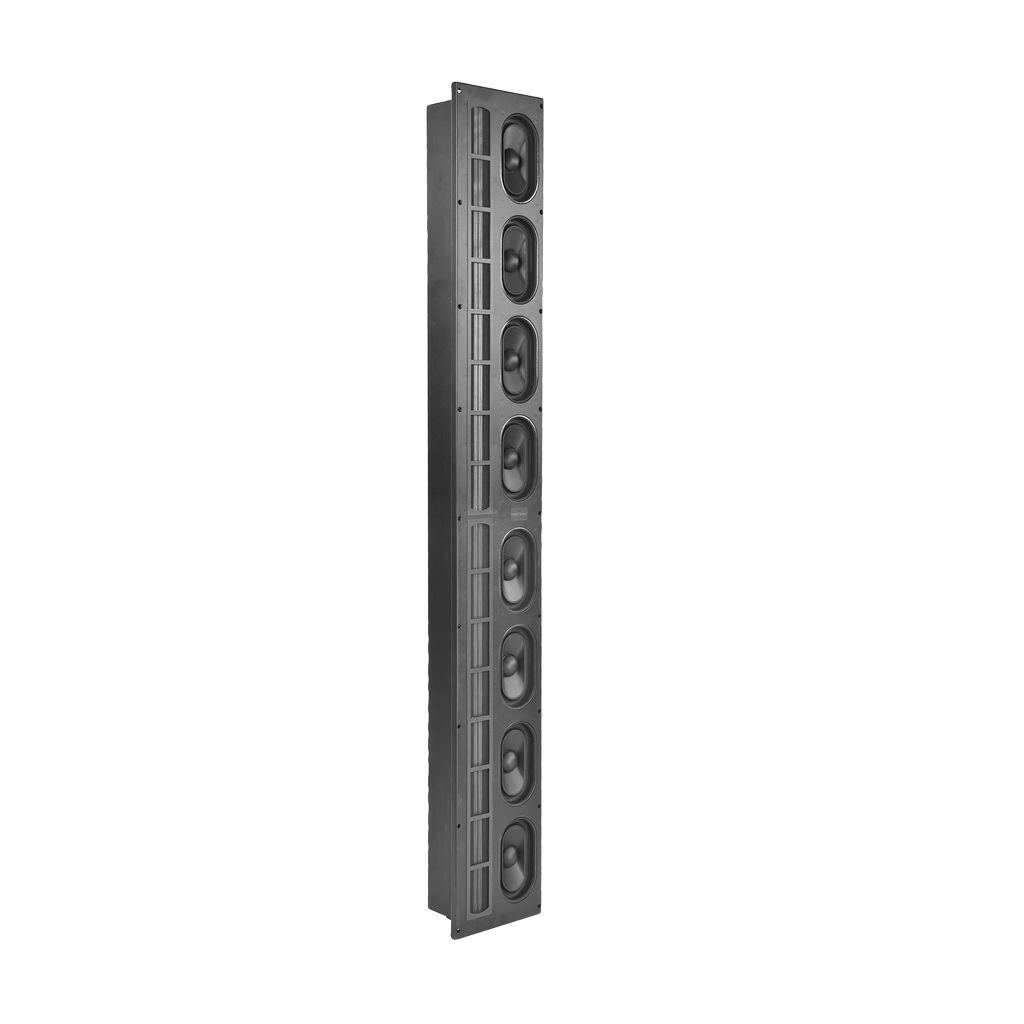

The Wisdom Audio Insight Series L8i is a planar-magnetic loudspeaker system from Wisdom Audio. The L8i benefits from the same core technologies and design elements of the Sage Series L75i packaged in a more compact and flexible form. It combines application-specific, state-of-the-art transducer elements in a way that takes full advantage of their inherent performance benefits. Product selection, amplification, processing, placement and acoustic integration should be confirmed as part of the complete system design.
Key benefits
- Engineered for premium private cinema and high-performance music systems
- Professional system matching for coverage, output and room volume
- Designed for integration with Wisdom Audio loudspeakers, subwoofers and electronics
- Installation and calibration planning available from Mirror Edge Networks
Technical specifications
| Frequency Response (Using Minimum Air Volume Spec) | 80Hz – 20kHz |
|---|---|
| Impedance | 4 ohms |
| Sensitivity | 91 dB / 2.83 V / 1m |
| Crossover Frequency | 550 Hz |
| Dispersion (Horizontal, -6dB) | 80° |
| Max SPL (1 Meter) | 115dB Continuous / 118dB Peak |
| Shipping Weight | 68 lbs. (31kg) |
| Dimensions HxWxD | 51.57” x 8.34” x 3.78” (131cm x 21.2cm x 9.6cm) |
System design and installation
Wisdom Audio systems require appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, finish options and the complete system configuration before supply.
Mirror Edge Networks support
Wisdom Audio prices are not displayed online. Every Wisdom Audio product is supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
