Description

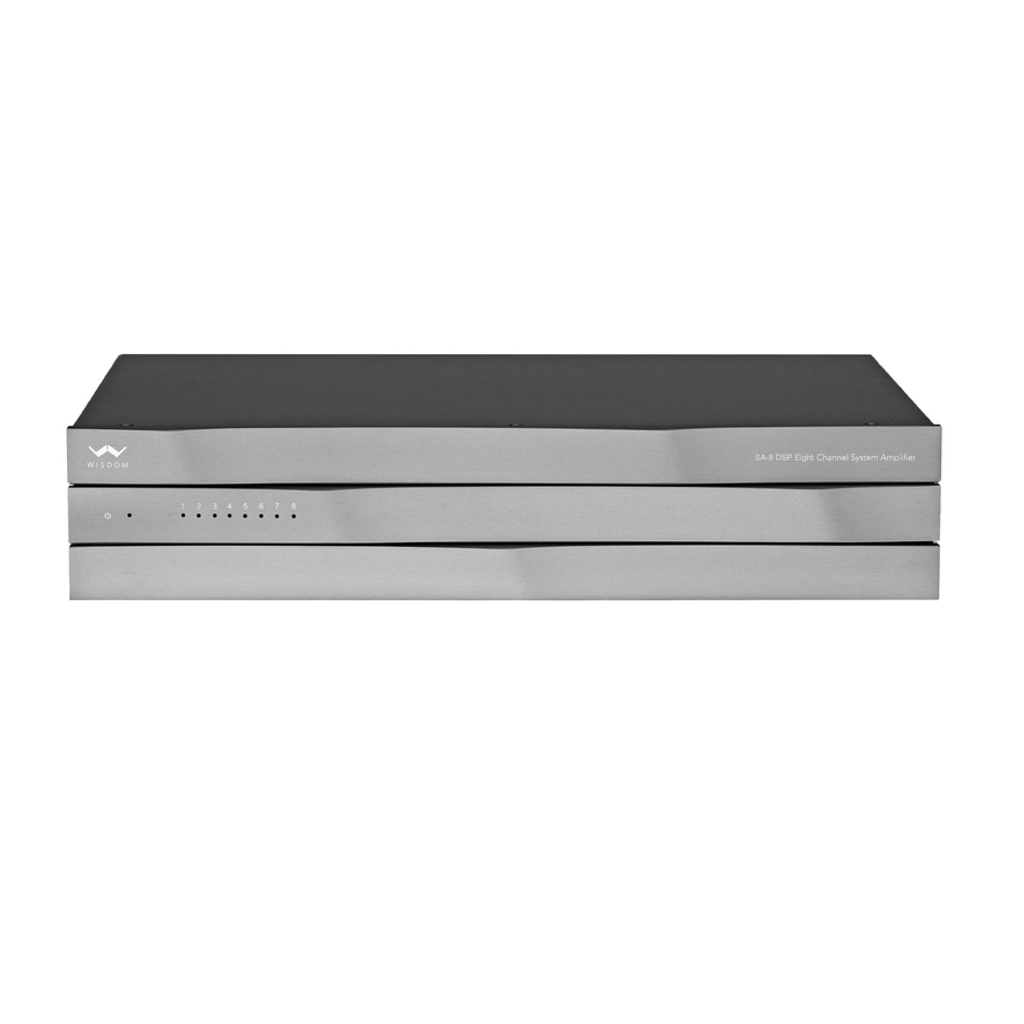

Wisdom Audio SA-8 DSP overview
The Wisdom Audio SA-8 DSP is a high-efficiency power amplifier from Wisdom Audio. Designed and built in the United States, the SA-8 DSP is a compact 2RU amplifier that delivers eight channels of high-performance amplification at 200W RMS per channel into eight ohms and 400W per channel into four ohms, all channel-driven. Product selection, amplification, processing, placement and acoustic integration should be confirmed as part of the complete system design.
Key benefits
- Engineered for premium private cinema and high-performance music systems
- Professional system matching for coverage, output and room volume
- Designed for integration with Wisdom Audio loudspeakers, subwoofers and electronics
- Installation and calibration planning available from Mirror Edge Networks
Technical specifications
| Number of Channels | 8 |
|---|---|
| Rated Power Output per Channel @ 8 ohms | 200 w/ch continuous rms power @ 8 ohms above power ratings from 20 Hz–20 kHz at <0.1% THD |
| Rated Power Output per Channel @ 4 ohms | 400 w/ch continuous rms power @ 4 ohms above power ratings from 20 Hz–20 kHz at <0.1% THD |
| Input Impedance | 25k ohms (balanced) |
| Input Sensitivity | 1.2V for full output |
| Amplifier Output Impedance | Less than 0.07 ohms from 20–20,000 Hz |
| Minimum Impedance Load | 2 ohms |
| Frequency Response | 5Hz – 45kHz, +0/-0.5dB |
| Dynamic Range | 120 dB |
| Signal to Noise Ratio | -100 dB (ref 10W rms, A-wtd.) |
| Bridgeable Channels | No |
| Trigger I/O | Input 8-20V DC ; Output 12V DC with built in sequencer delay |
| Dimensions – HxWxD | 3.5” x 17” x 13.63” (8.89cm x 43.2cm x 34.7cm) |
System design and installation
Wisdom Audio systems require appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, finish options and the complete system configuration before supply.
Mirror Edge Networks support
Wisdom Audio prices are not displayed online. Every Wisdom Audio product is supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
