Description

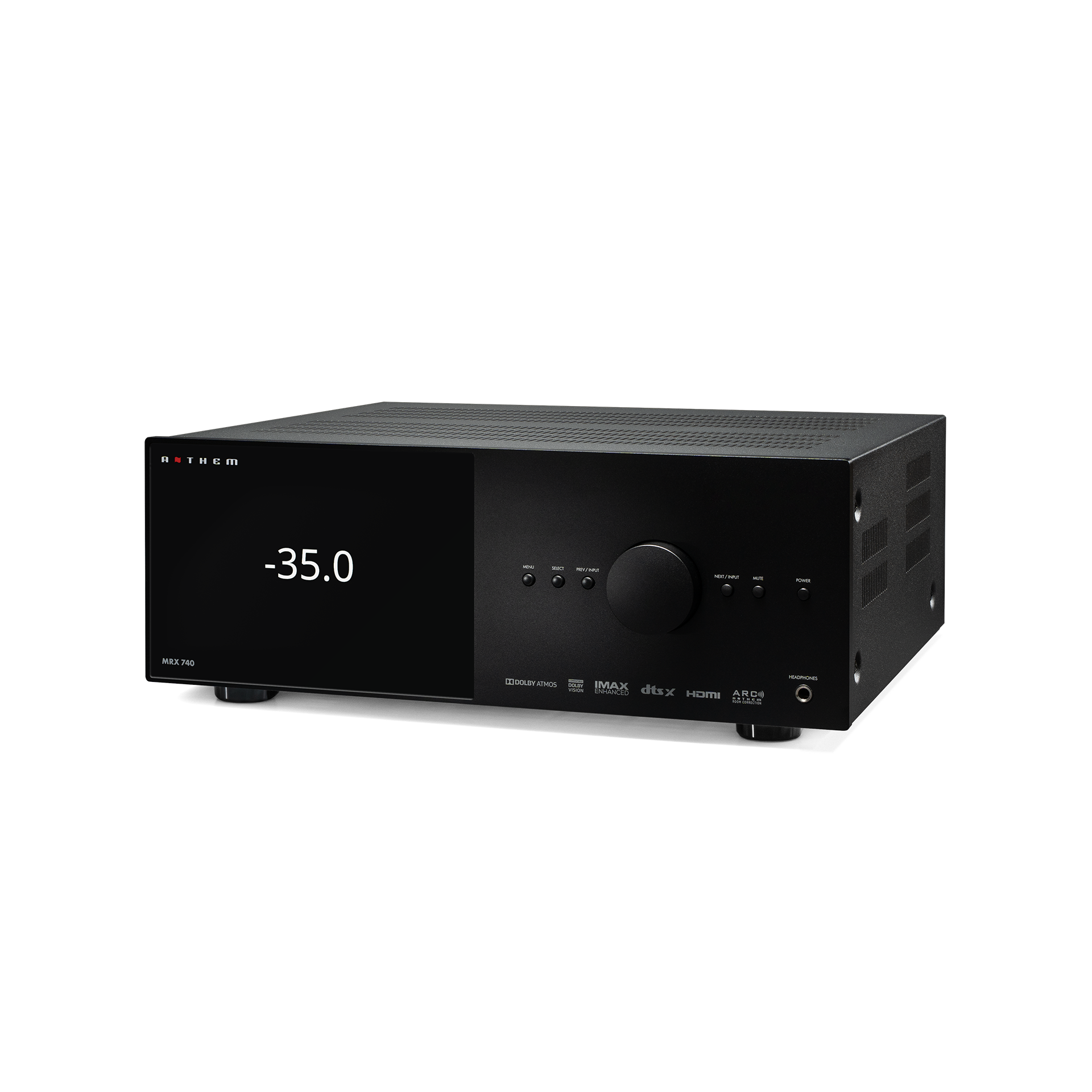

Anthem MRX 740 8K overview
The Anthem MRX 740 8K is an 11.2-channel A/V receiver with seven onboard amplifier channels and preamplifier outputs for a larger immersive layout. It is a flexible foundation for a cinema system that may begin with internal amplification and later add dedicated power amplifiers.
Key features
- 11.2 preamplifier channels and seven powered channels
- ARC Genesis room correction
- Dolby Atmos, DTS:X and IMAX Enhanced
- Seven 8K HDMI inputs and three outputs with eARC
- 8K/60Hz and 4K/120Hz pass-through
- Web-based setup and network streaming support
Technical specifications
| Preamplifier channels | 11.2 |
|---|---|
| Power-amplifier channels | 7 |
| Output, channels 1–5 into 8Ω | 140W per channel, two channels driven |
| Output, channels 1–5 into 6Ω | 170W per channel, two channels driven |
| Output, remaining channels into 8Ω | 60W per channel, two channels driven |
| Supported speaker impedance | Above 4Ω |
| HDMI inputs / outputs | 7 / 3 |
| Maximum HDMI video | 8K/60Hz or 4K/120Hz |
System design considerations
This component should be selected as part of the complete signal, amplification, loudspeaker and room plan. Confirm channel requirements, loudspeaker impedance, cable connections, ventilation and control compatibility before installation.
System matching and support
Mirror Edge Networks can confirm loudspeaker loading, channel allocation, source compatibility, ventilation, rack space and control-system integration before supply. Displayed online prices include VAT; free nationwide delivery is available, typically within 3–5 business days where supplier stock is available.
