Description

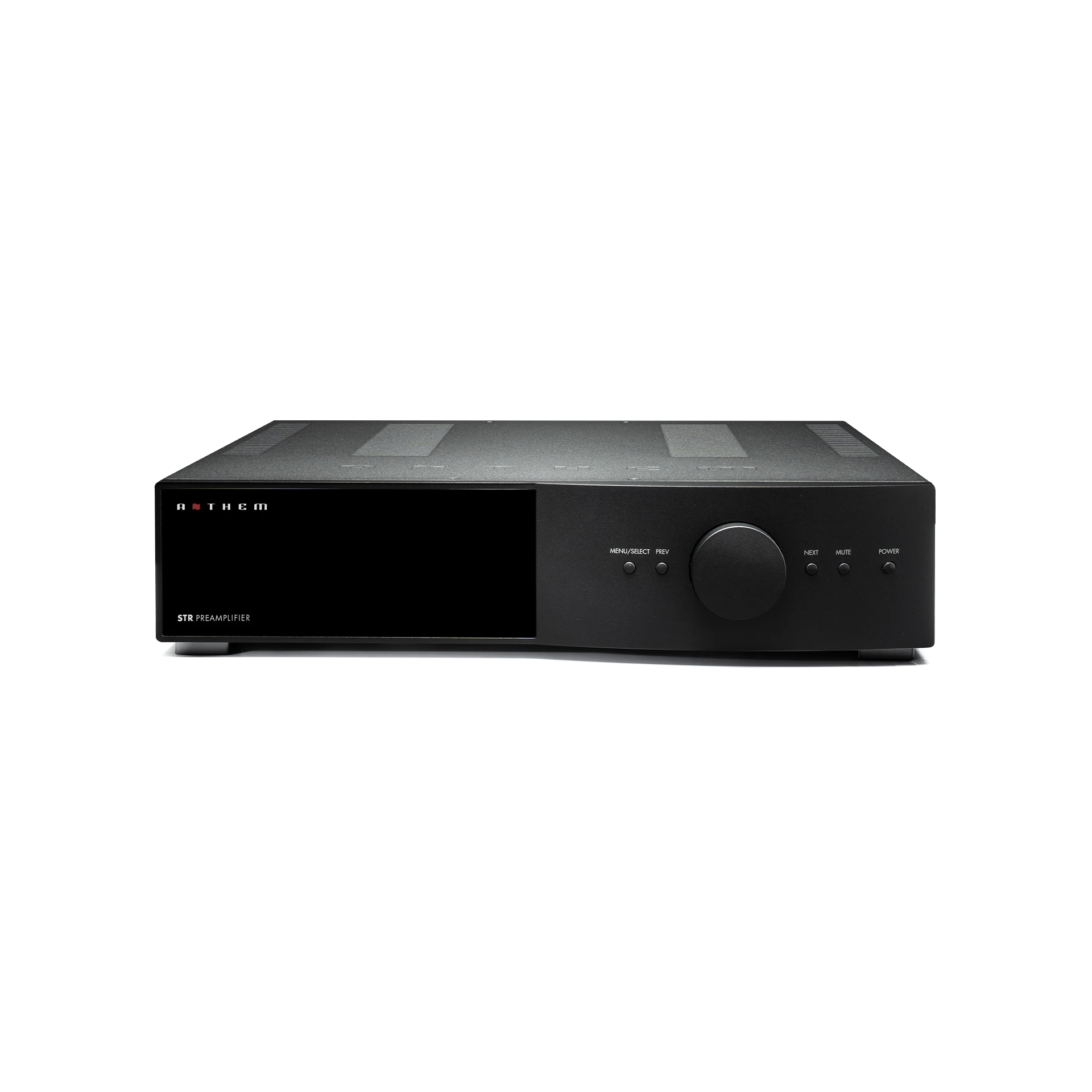

Anthem STR Preamplifier (Black) overview
The Anthem STR Preamplifier combines a low-noise analogue preamplifier with high-resolution digital processing, ARC Genesis and flexible bass management. It can act as the control centre for a dedicated stereo system while also integrating with a cinema processor through its home-theatre bypass mode.
Key features
- ARC Genesis room correction
- Bass management for two subwoofers in mono or stereo
- Asynchronous USB audio up to 32-bit/384kHz PCM and DSD 5.6MHz
- Coaxial, optical and AES/EBU digital inputs up to 192kHz
- MM and MC phono inputs with alternative playback curves
- Balanced outputs and home-theatre bypass
Technical specifications
| USB audio | Up to 32-bit/384kHz PCM; DSD 2.8/5.6MHz |
|---|---|
| Digital inputs | Coaxial, optical and AES/EBU up to 192kHz |
| Phono input impedance | 100Ω MC; 47kΩ / 270pF MM |
| Phono gain | 61dB MC; 41dB MM |
| Phono RIAA accuracy | ±0.1dB |
| Subwoofer outputs | Two, configurable mono or stereo |
| Virtual inputs | Up to 30 |
| Control | Ethernet, RS-232 and IR remote |
System design considerations
This component should be selected as part of the complete signal, amplification, loudspeaker and room plan. Confirm channel requirements, loudspeaker impedance, cable connections, ventilation and control compatibility before installation.
System matching and support
Mirror Edge Networks can confirm loudspeaker loading, channel allocation, source compatibility, ventilation, rack space and control-system integration before supply. Displayed online prices include VAT; free nationwide delivery is available, typically within 3–5 business days where supplier stock is available.
