Description

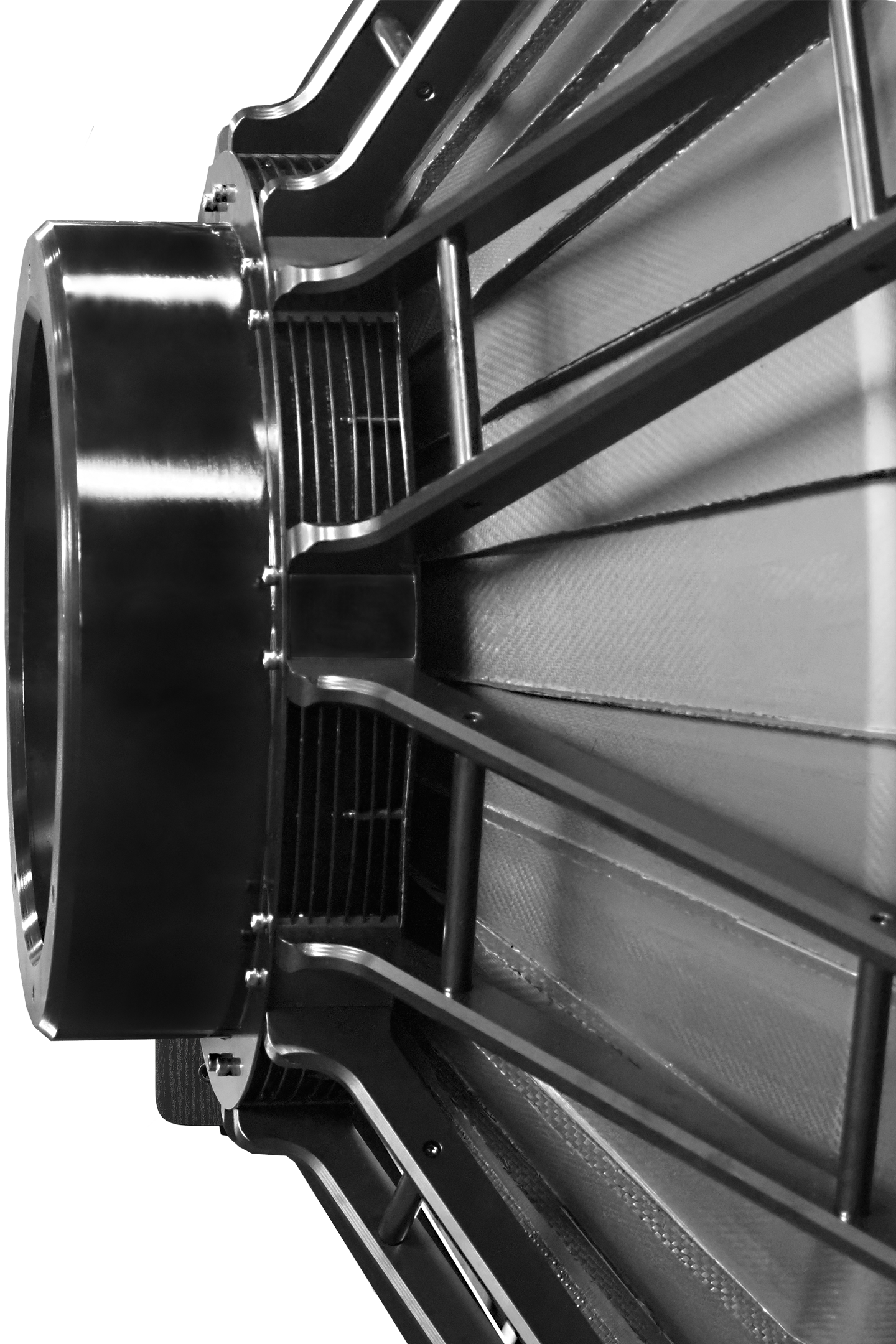

ASCENDO THE100 SUB PRO PASSIVE SEALED overview
The ASCENDO THE100 SUB PRO PASSIVE SEALED is passive cinema subwoofer engineered for controlled directivity, high dynamic capability and integration into professionally designed immersive audio systems. Product selection, amplification, DSP, placement and acoustic integration should be determined as part of the complete room design.
Key benefits
- Engineered specifically for high-performance cinema and immersive audio
- Professional system matching for output, coverage and room volume
- Designed for integration with ASCENDO amplification, DSP and bass systems
- Installation planning available from Mirror Edge Networks
Technical specifications
| Speaker Type | Custom-built 100" woofer with dual 21" voice coil |
|---|---|
| Principle | Sealed |
| Passive | Active | Passive |
| XMAX | 39 mm excursion each direction, voice coil remaining in homogeneous magnetic field, linear and lowest distortion |
| SPL Peak (Peak / Half Space 2pi) | Calculated Data (Example, custom enclosure dependent) 146 dB (Cont.) / 150 dB (Peak) |
| Frequency Range | Calculated Data (Example, custom enclosure dependent) 1 Hz – 100 Hz |
| Power Handling | 20000 W (20 kW) |
| Efficiency | 105 dB / 1 W/m 2 pi |
| Impedance | Dual Voice Coil, 4 Ω each |
| Directivity Horizontal x Vertical in deg° | 360° |
| Input Terminal | Binding Posts |
| Dimensions (W/H/D) mm (Without Grille) | 2360 | 2360 | 775 (Driver only) |
| Weight | 573.20 lbs | 260 kg |
| Enclosure | Complete custom design of enclosure for desired installation, for dealer/contractor build locally, minimum 10 m³ |
System design and installation
This product requires appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, availability and the complete system configuration before supply.
Mirror Edge Networks support
ASCENDO products are supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
