Description

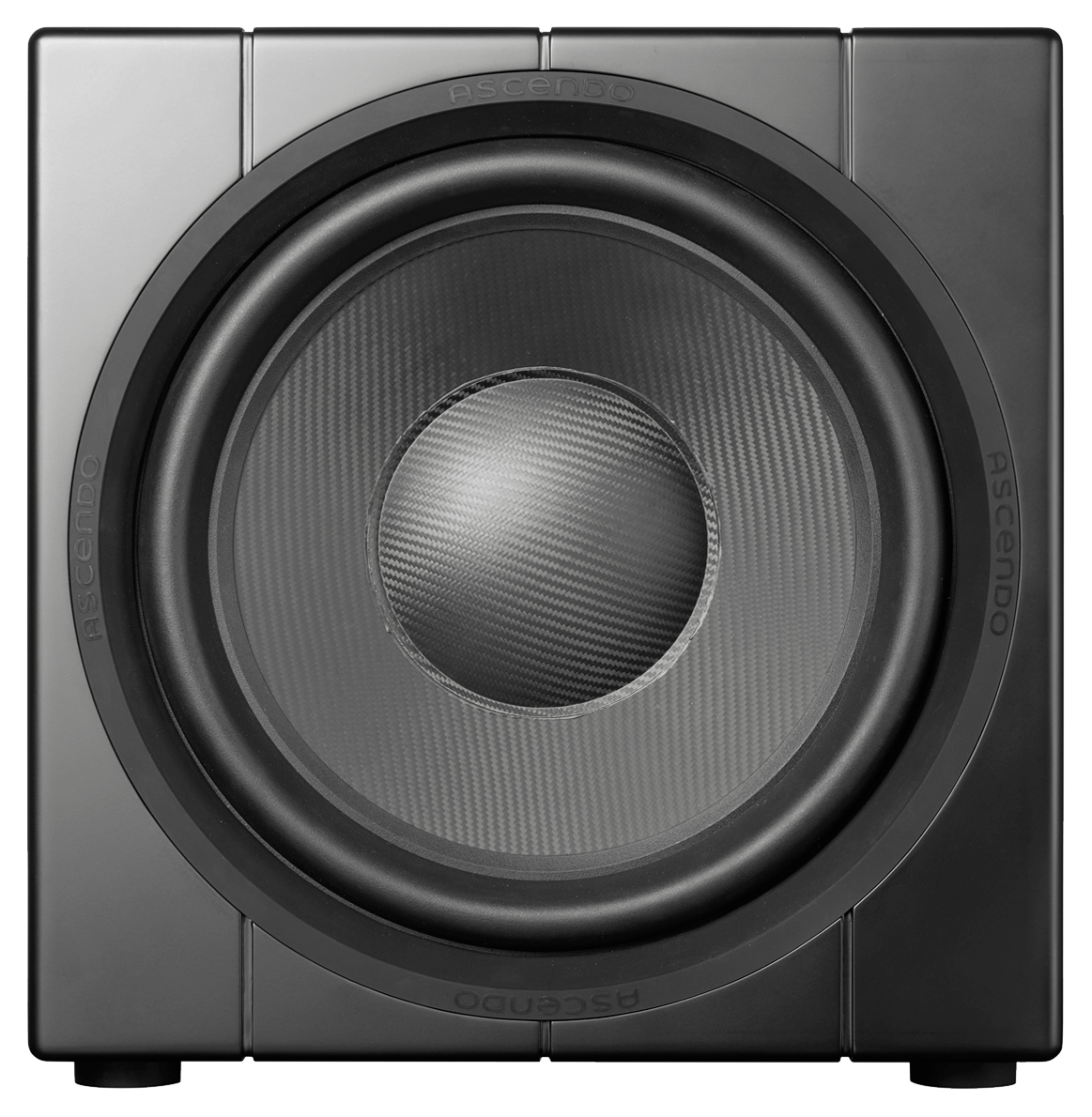

ASCENDO THE16 SUB PRO PASSIVE SEALED SHALLOW overview
The ASCENDO THE16 SUB PRO PASSIVE SEALED SHALLOW is passive cinema subwoofer engineered for controlled directivity, high dynamic capability and integration into professionally designed immersive audio systems. Product selection, amplification, DSP, placement and acoustic integration should be determined as part of the complete room design.
Key benefits
- Engineered specifically for high-performance cinema and immersive audio
- Professional system matching for output, coverage and room volume
- Designed for integration with ASCENDO amplification, DSP and bass systems
- Installation planning available from Mirror Edge Networks
Technical specifications
| Speaker Type | 16” forward-firing, advanced carbon Rohacell® composite sandwich cones, neodymium motor with 4” ultra-high-temperature voice-coil |
|---|---|
| Principle | Sealed |
| Passive | Active | Passive |
| XMAX | 20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion |
| SPL Peak (Peak / Half Space 2pi) | Measured Data 123 dB @ 32 Hz |
| Frequency Range | Measured Data (without DSP) 38 Hz – 500 Hz / -3 dB 24 Hz – 500 Hz / -12 dB |
| Power Handling | 1700 W |
| Efficiency | 87 dB / 1 W/m 2 pi |
| Impedance | 4 Ω |
| Directivity Horizontal x Vertical in deg° | 360° |
| Input Terminal | 4-conductor Phoenix 12 AWG (3.3 mm²) |
| Dimensions (W/H/D) mm (Without Grille) | 470 | 485 | 295 (Height without feet: 470) |
| Weight | 61.73 lbs | 28 kg |
| Enclosure | Internally braced MDF |
System design and installation
This product requires appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, availability and the complete system configuration before supply.
Mirror Edge Networks support
ASCENDO products are supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
