Description

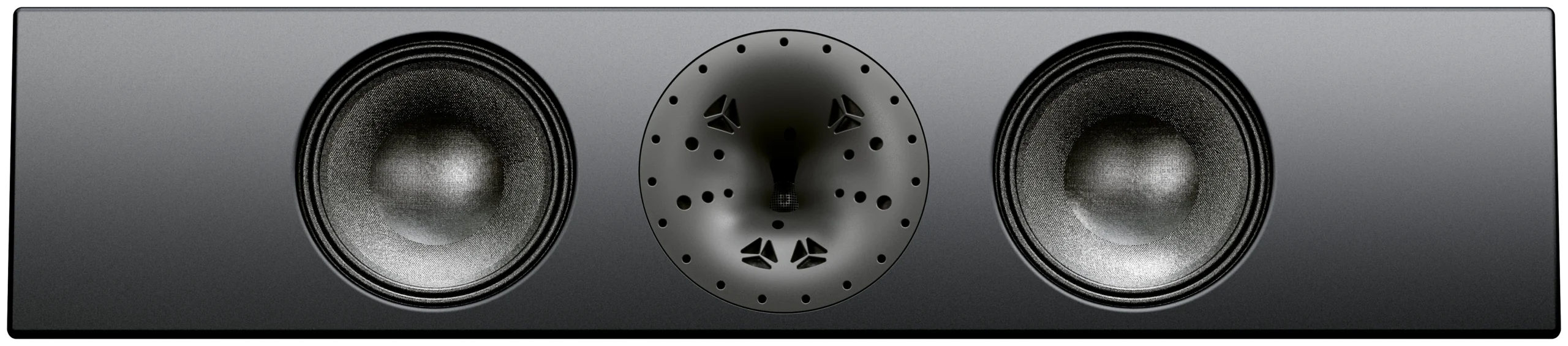

ASCENDO THE8 PRO PASSIVE LED WEDGE overview
The ASCENDO THE8 PRO PASSIVE LED WEDGE is passive point-source cinema loudspeaker engineered for controlled directivity, high dynamic capability and integration into professionally designed immersive audio systems. Product selection, amplification, DSP, placement and acoustic integration should be determined as part of the complete room design.
Key benefits
- Engineered specifically for high-performance cinema and immersive audio
- Professional system matching for output, coverage and room volume
- Designed for integration with ASCENDO amplification, DSP and bass systems
- Installation planning available from Mirror Edge Networks
Technical specifications
| Speaker Type | 3" compression driver, 8" coax mid with proprietary waveguide & LF: 2 x 8" |
|---|---|
| Principle | Vented |
| Passive | Active | Passive |
| Woofer | Dual 8", horizontal D’Appolito layout |
| Tweeter | 3" compression driver on proprietary waveguide (coax with 8" mid) |
| SPL (Half Space 2pi) | Calculated data 131 dB (Cont.) / "TBA" dB (Peak) |
| Frequency Range | Calculated Data 75Hz – 21 kHz / -3dB |
| Impedance | 4 Ω nominal |
| Directivity Horizontal x Vertical in deg° | 100° x 60° |
| Input Terminal | Neutrik Speakon® |
| Weight | 48.50 lbs | 22 kg |
| Enclosure | Internally braced MDF |
| Finish | Satin matte black |
| Mounting | Keyhole hangers (H/V); side V-brackets (2-axis aiming); 90° bayonet invisible mount (tight-access); recessed cable groove |
System design and installation
This product requires appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, availability and the complete system configuration before supply.
Mirror Edge Networks support
ASCENDO products are supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
