Description

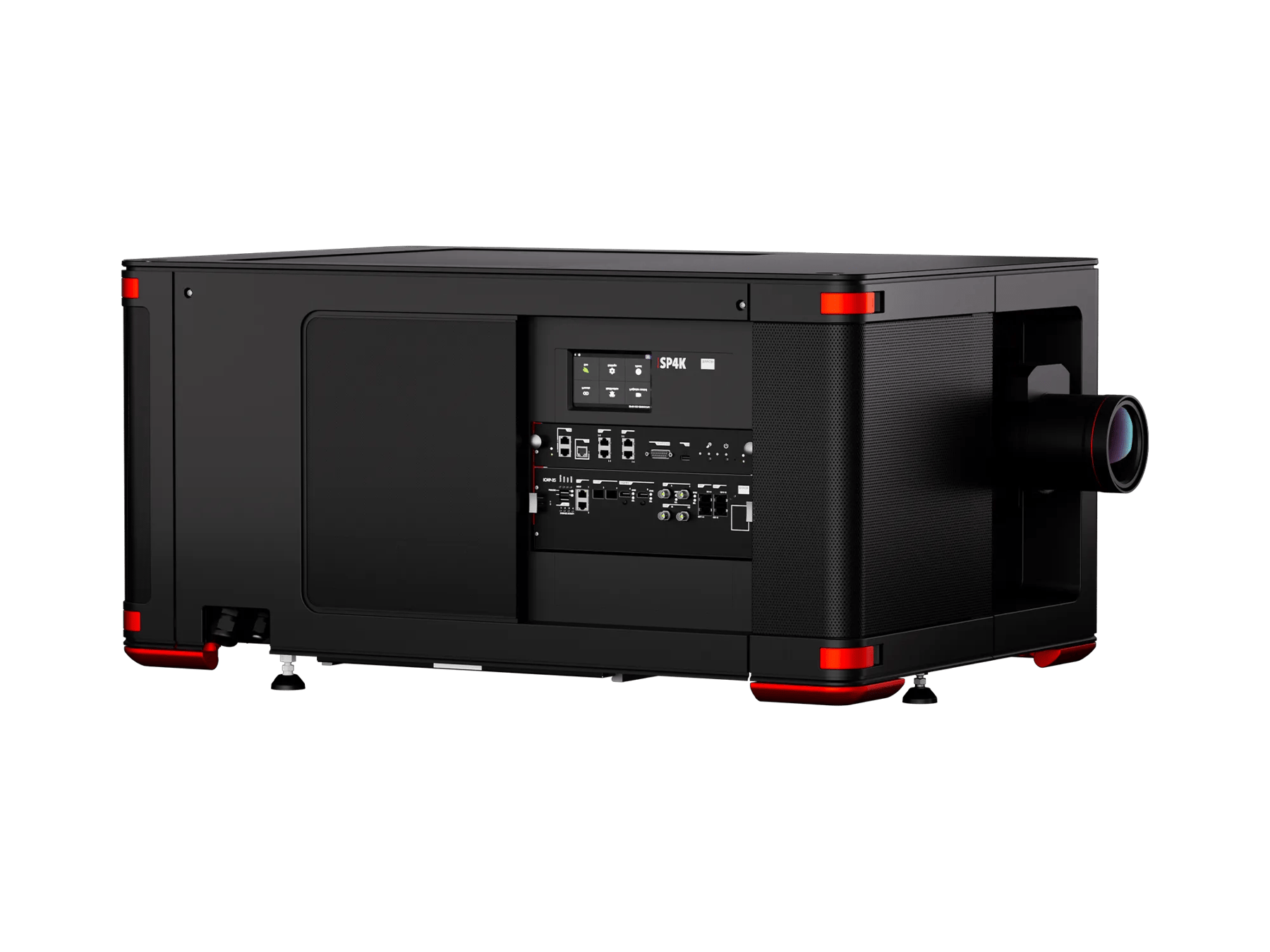

Barco Residential Freya+ overview
A high-output native-4K, three-chip DLP RGB-laser projector for large premium home cinemas, built on Barco’s Series 4 platform with integrated cinema-server and processing capability.
Key features
- 13,500-lumen RGB-laser output
- Native 4K three-chip DLP architecture
- 100% Rec.2020 coverage measured in xy coordinates
- Integrated Barco Alchemy ICMP-X
- DCI-compliant playback, HDR10 and 3D support
Technical specifications
| Projector type | Three-chip DLP |
|---|---|
| Imaging technology | 3 × 0.98-inch DC4K DMD |
| Native resolution | 4096 × 2160 |
| Aspect ratio | 1.89:1 |
| Light source | RGB laser |
| Light output | 13,500 lumens typical |
| Contrast | Up to 8,000:1 sequential typical |
| Colour gamut | DCI-P3 compliant; 100% Rec.2020 measured in xy coordinates |
| Image processing | Barco Alchemy Integrated Cinema Media Processor (ICMP-X) |
| HDR / 3D | HDR10; active-glasses and polarization 3D systems supported |
| Primary inputs | 2 × HDMI 2.0a, 2 × 3G-SDI, AES/EBU audio, GPIO, Ethernet and USB |
| Cinema playback | DCI 4K 2D up to 60 fps; DCI 4K 3D at 24 or 30 fps per eye |
| Integrated storage | 3 × 4 TB SSD |
| Control | RS-232, TCP/IP and GPIO |
| Power consumption | 2.2 kW; 3 W Eco mode |
| Dimensions | 710 × 1070 × 547 mm including feet; length 1132 mm with B lens holder |
| Weight | 105 kg |
| Warranty | Limited 3 years parts and labour; extendable to 5 years |
Official Barco product information
System design considerations
Projector selection must be based on screen size and gain, throw distance, lens choice, room geometry, ambient-light control, ventilation, electrical supply, signal distribution, mounting, acoustic requirements and professional calibration. Final performance depends on the complete cinema design.
Request a quote
Freya+ is supplied on an enquiry basis. Mirror Edge Networks can confirm current South African availability, the correct lens and configuration, installation requirements and system compatibility. Public pricing is intentionally not displayed.
