Description

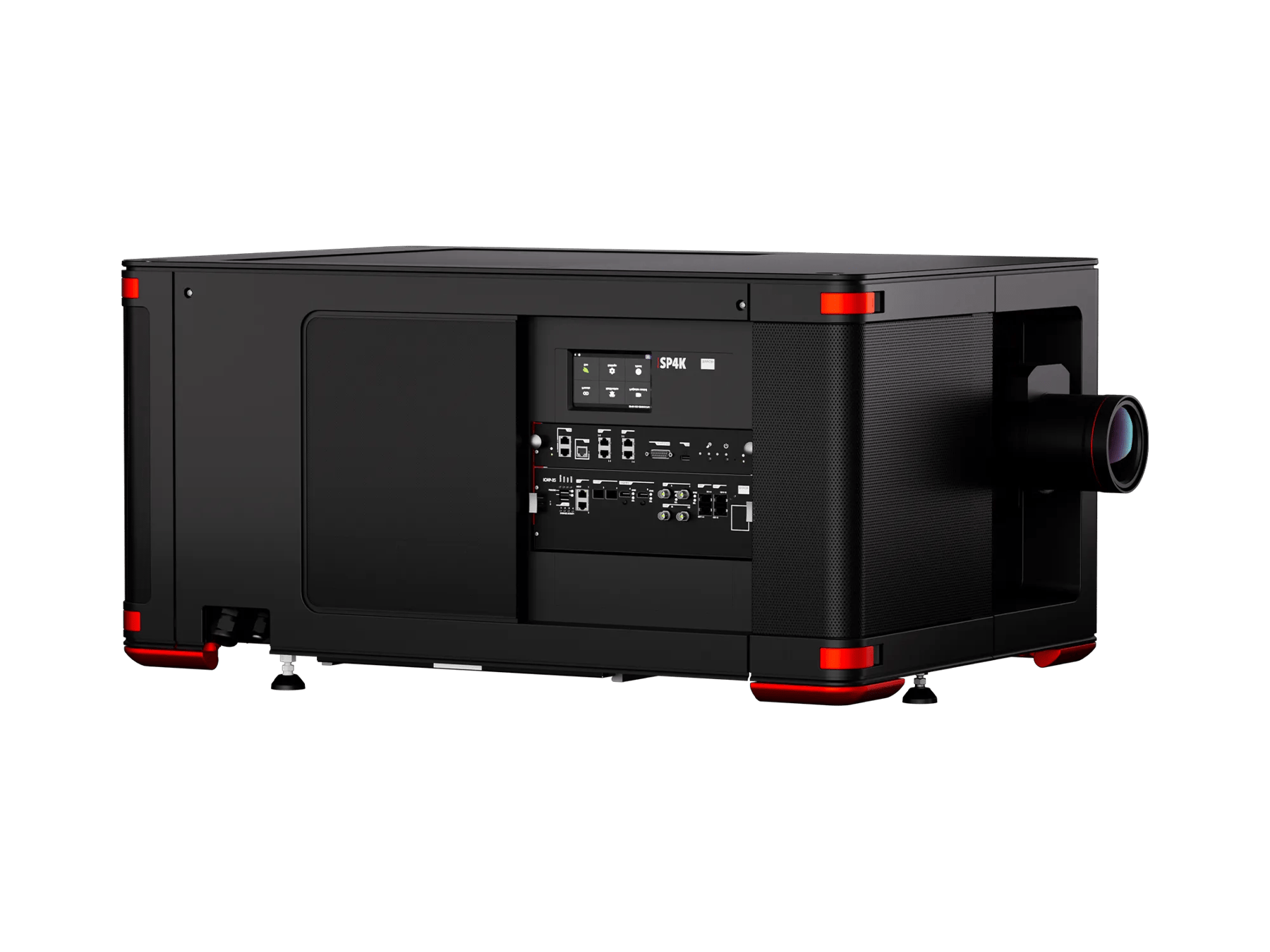

Barco Residential Freya overview
A native-4K, three-chip DLP RGB-laser cinema projector designed for premium dedicated home cinemas, combining Barco’s Series 4 platform with integrated Alchemy cinema processing.
Key features
- Native 4K cinema imaging
- RGB-laser illumination with 100% Rec.2020 coverage measured in xy coordinates
- Integrated Barco Alchemy ICMP-X
- HDR10 and 3D support
- Multiple VHC lens options for engineered cinema installations
Technical specifications
| Projector type | Three-chip DLP |
|---|---|
| Imaging technology | 3 × 0.98-inch DC4K DMD |
| Native resolution | 4096 × 2160 |
| Aspect ratio | 1.89:1 |
| Light source | RGB laser |
| Light output | 7,500 lumens typical |
| Contrast | Up to 8,000:1 sequential typical; up to 1,000:1 ANSI |
| Colour gamut | DCI-P3 compliant; 100% Rec.2020 measured in xy coordinates |
| Image processing | Barco Alchemy Integrated Cinema Media Processor (ICMP-X) |
| HDR / 3D | HDR10; active-glasses and polarization 3D systems supported |
| Primary inputs | 2 × HDMI 2.0a, 2 × 3G-SDI, AES/EBU audio, GPIO, Ethernet and USB |
| Cinema playback | DCI 4K 2D up to 60 fps; DCI 4K 3D at 24 or 30 fps per eye |
| Integrated storage | 3 × 4 TB SSD |
| Control | RS-232, TCP/IP and GPIO |
| Power consumption | 1.4 kW; 3 W Eco mode |
| Dimensions | 710 × 1070 × 547 mm including feet; length 1132 mm with B lens holder |
| Weight | 90 kg |
| Warranty | Limited 3 years parts and labour; extendable to 5 years |
Official Barco product information
System design considerations
Projector selection must be based on screen size and gain, throw distance, lens choice, room geometry, ambient-light control, ventilation, electrical supply, signal distribution, mounting, acoustic requirements and professional calibration. Final performance depends on the complete cinema design.
Request a quote
Freya is supplied on an enquiry basis. Mirror Edge Networks can confirm current South African availability, the correct lens and configuration, installation requirements and system compatibility. Public pricing is intentionally not displayed.
