Description

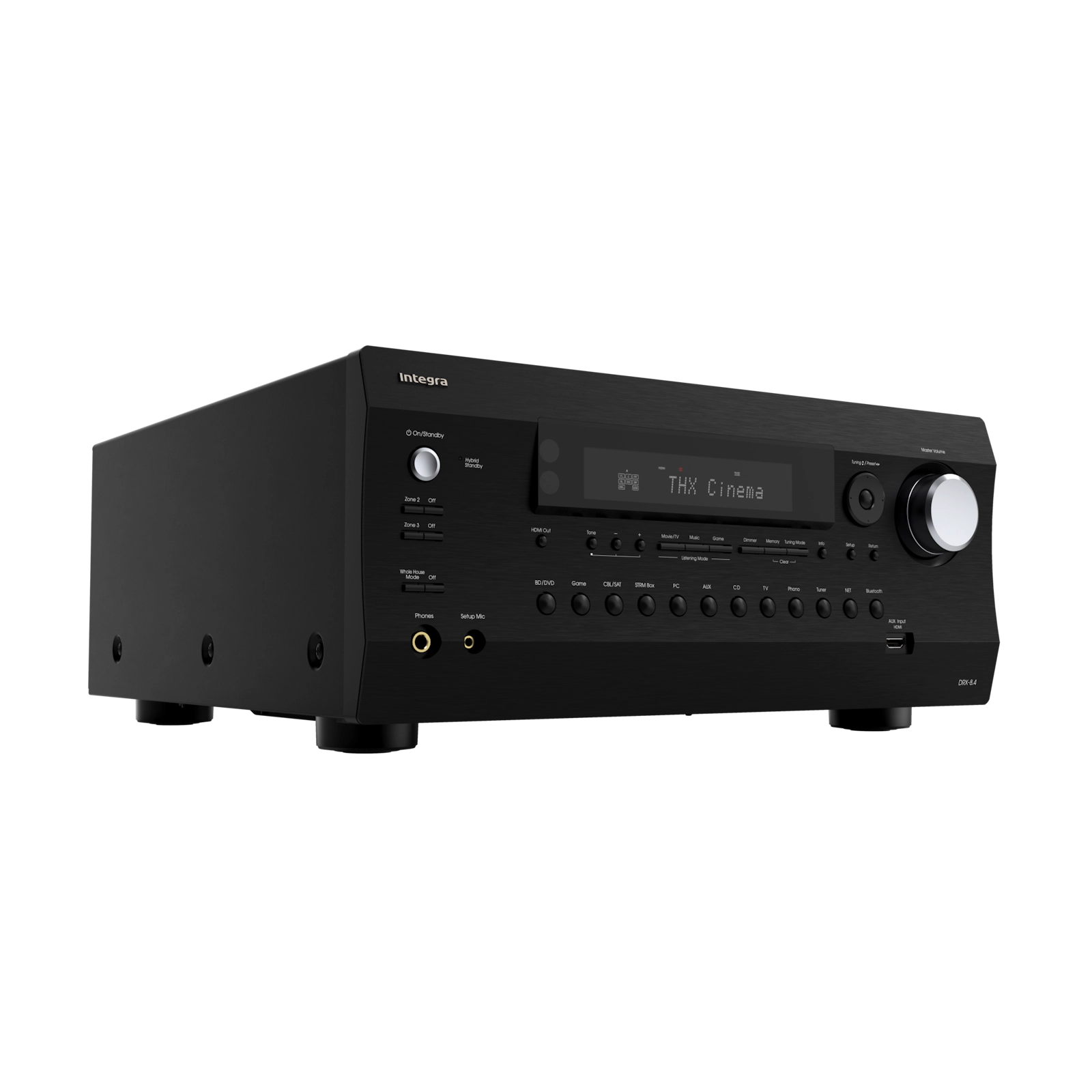

Integra DRX-8.4 overview
Integra’s flagship 11.4-channel network AV receiver, combining eleven channels of 150-watt amplification, Dirac Live Premium, professional XLR connectivity and advanced 8K HDMI integration.
The DRX-8.4 is designed around custom installation, with web-based setup, remote monitoring compatibility and control-system integration alongside its cinema, gaming and multi-room capabilities.
Key features
- Eleven-channel Class A/B amplification rated at 150 watts per channel
- 11.4-channel processing for systems up to 7.2.4
- Dirac Live Premium included with optional Bass Control upgrade
- THX Certified Select, IMAX Enhanced and Auro-3D
- Six 40Gbps HDMI inputs supporting 8K/60 and 4K/120
- Professional XLR connectivity and extensive diagnostic tools
Technical specifications
| Receiver configuration | 11.4-channel network AV receiver |
|---|---|
| Amplified channels | 11 |
| Rated power | 150 W per channel into 8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven |
| Maximum processing layout | Up to 7.2.4 channels |
| Subwoofer processing | 2 independent subwoofer channels plus 2 parallel outputs |
| Surround formats | Dolby Atmos, DTS:X, Auro-3D, Dolby TrueHD and DTS-HD Master Audio |
| Cinema certification | THX Certified Select and IMAX Enhanced |
| Room calibration | Dirac Live Premium, 20 Hz–20 kHz; Dirac Live Bass Control ready as an optional upgrade |
| Digital-to-analogue conversion | Two 32-bit ESS ES9026PRO Hyperstream DACs |
| HDMI connectivity | 7 inputs, including 6 × 40Gbps inputs; 3 outputs with eARC |
| Maximum HDMI formats | Up to 8K/60 and 4K/120 passthrough |
| Premium analogue connectivity | Balanced XLR inputs and outputs for professional long-run connections |
| Streaming | Roon Ready, Chromecast built-in, AirPlay 2, Spotify, Amazon Music HD, TIDAL, Deezer and TuneIn |
| Multi-room | Assignable Zone 2 and Zone 3 amplification; Works with Sonos |
| Custom integration | Advanced web setup, backup and diagnostics; OvrC Pro, Domotz and other monitoring; extensive control API, RS-232, IR and trigger connectivity |
| Dimensions (W × H × D) | 435 × 198 × 470 mm |
| Weight | 22.5 kg |
| Optional rack mount | IRK-180-4C |
| South African supplier item code | DRX8.4BMMM |
Official Integra DRX-8.4 product information
System design considerations
Receiver selection should account for the final speaker layout, amplifier loading, subwoofer configuration, room-correction plan, HDMI bandwidth, source and display compatibility, equipment-rack ventilation, network infrastructure and control integration. Regional specifications and available streaming services should be confirmed for the South African model before installation.
Ordering and support
The displayed price includes VAT. This product may be purchased online or quoted as part of a complete system. Mirror Edge Networks offers free nationwide delivery, typically within 3–5 business days where supplier stock is available, and can confirm system matching, installation accessories and calibration requirements before order.
