Description

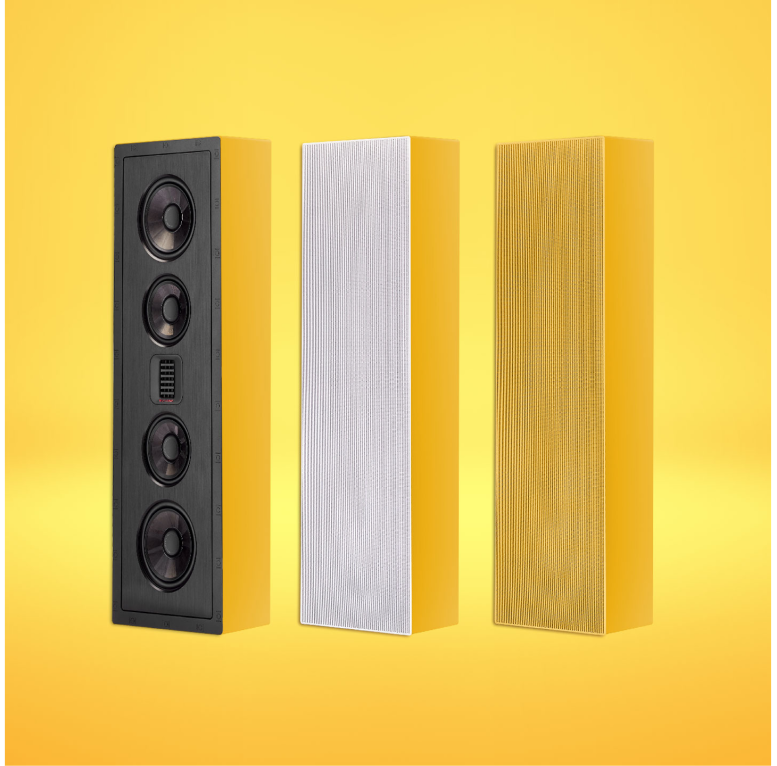

MartinLogan Tribute 5XW Architectural In-Wall Speaker overview
The MartinLogan Tribute 5XW Architectural In-Wall Speaker is a architectural in-wall loudspeaker from MartinLogan. Featuring five drivers, a lightning-fast Folded Motion XT Obsidian tweeter and dual 5.5-inch unidirectional carbon fiber multi-section cone woofers with a Nomex® backer and matching 6.5-inch passive radiators, seamlessly blended with a flagship-class Vojtko crossover network constructed from audiophile-grade components. A pre-installation bracket is available. Mirror Edge Networks can confirm system matching, placement and installation requirements before supply.
Key benefits
- Discreet architectural installation without sacrificing system performance
- Purpose-engineered drivers and crossover for coherent in-wall sound
- Designed for professionally planned music or home cinema systems
- Installation, placement and calibration support from Mirror Edge Networks
Technical specifications
| Frequency Response | 71–25,000 Hz ± 3 dB |
|---|---|
| Tweeter Dispersion (horizontal x vertical) | 80° x 30° |
| Sensitivity | 94 dB @ 2.83 volts/ meter |
| Impedance | 4 ohms. Compatible with / 4, 6, or 8 ohm rated amps. |
| Crossover Frequency | 2250 Hz |
| High Frequency Driver | 1.25 x 2.4 inch (3.2 x 6.1 cm) / Folded Motion XT Obsidian / transducer with 4.5 x 2.75 inch / (11.4 x 7 cm) diaphragm. |
| Tweeter Aiming | Rotatable tweeter for horizontal / or vertical installations |
| Low Frequency Driver | Two 5.25-inch (13.33 cm) black / unidirectional carbon fiber / multi-section cone with Nomex® / backer and cast aluminum / basket, sealed back chamber / format. Concave dust cap. |
| Passive Radiators | Two 6.5-inch (16.5 cm) black / unidirectional carbon fiber / multi-section cone with Nomex® / backer and cast aluminum / basket, sealed back chamber / format. Concave dust cap. |
| Components | Custom air core coil inductors, / polypropylene film capacitors, / and low DF electrolytic capacitors. / Thermal/current protection. |
| Suitable Amplifier Range | 20–250 watts |
| Max Power Handling | 125 watts |
| Binding Post Inputs | Push style (two sets for / easy installation) |
| Weight | 25.5 lb (11.6 kg) |
| Dimensions (overall size) | 31.13 x 10.6 x 4.09 inch / (790.82 x 269.2 x 103.93 mm) |
| Required Wall Opening (includes tolerance) | 29.82 x 9.29 inch / (757 x 236 mm) |
| Projection From Wall Surface | 0.31 inch / (7.8 mm) |
| Depth Behind Wall Surface | 3.8 inch / (96.5 mm) |
System design and installation
Final performance depends on appropriate amplification, placement, room acoustics and calibration. Mirror Edge Networks will confirm compatibility, finish availability and the complete system configuration before supply.
Mirror Edge Networks support
MartinLogan is supplied on a Request Quote basis and prices are not displayed online. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and project requirements allow.
