Paradigm CI Elite E7-LCR In-Wall Speaker v2 (White) overview

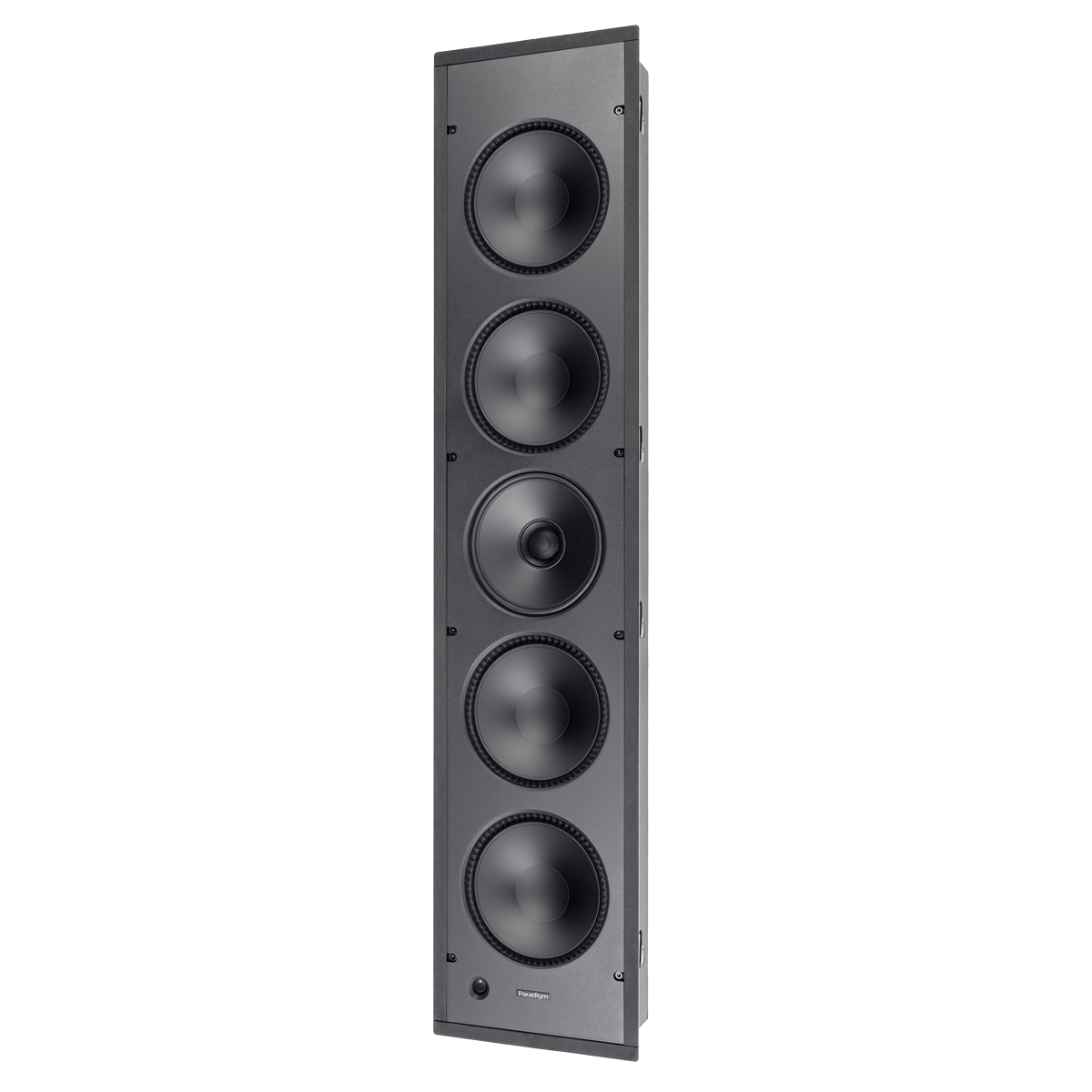

The Paradigm CI Elite E7-LCR In-Wall Speaker v2 (White) is a architectural LCR loudspeaker from Paradigm. The Custom Installer’s Performance-Oriented Solution. The CI Elite series is Made in Canada and has all the technology advantages of our CI PRO Series, but we didn’t stop there. It’s packed full of features that make a difference, and it doesn’t get much sweeter than this when looking for the ultimate sound performance. Mirror Edge Networks can confirm system matching, amplification, placement and room requirements before supply.
Key benefits
- Engineered by Paradigm for detailed, dynamic music and cinema reproduction
- Purpose-built for discreet installation without compromising system performance
- Suitable for professionally planned stereo or home cinema systems
- Product selection, installation planning and calibration support from Mirror Edge Networks
Technical specifications
| DESIGN | 4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System, Machined Aluminum Baffle |
|---|---|
| CROSSOVER | 3rd-order electro-acoustic at 3 kHz 2nd-order electro-acoustic @ 480 Hz |
| FREQUENCY RESPONSE ON-AXIS | ±3 dB from 80 Hz – 22 kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±3 dB from 80 Hz – 19 kHz |
| HIGH FREQUENCY DRIVER | Coaxial 1” (2.5cm) Aluminum Magnesium Ceramic AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, Patented Dual-Sync™ Continuous Flux Motor |
| MIDRANGE FREQUENCY DRIVER | Coaxial 6” (15.2cm) AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 2” high-temp multi-layered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor |
| BASS FREQUENCY DRIVER | Two 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets |
| PASSIVE RADIATORS | Two 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets |
| SENSITIVITY ROOM / ANECHOIC | 95 dB / 92 dB |
| LOW FREQUENCY EXTENSION | 55 Hz |
| SUITABLE AMPLIFIER POWER RANGE | 15-220 W |
| MAXIMUM INPUT POWER | 150 W |
| IMPEDANCE | Compatible with 8 ohms |
| CUT-OUT DIMENSIONS | 42” x 8-1/2” (106.6cm x 21.5cm) |
| MINIMUM MOUNTING DEPTH / (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) | 3-7/8” (9.8cm) |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | 43” x 9-1/2” x 4-1/8” (109.2cm x 19.5cm x 10.5cm) |
| WEIGHT | 33.0 lbs (14.9 kg) |
| FINISHES | White, paintable grille, black speaker |
System design and installation
Final performance depends on appropriate amplification, placement, room acoustics and calibration. Mirror Edge Networks will confirm compatibility, finish availability and the complete system configuration before supply.
Mirror Edge Networks support
Paradigm is supplied on a Request Quote basis and prices are not displayed online. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and project requirements allow.
