Description

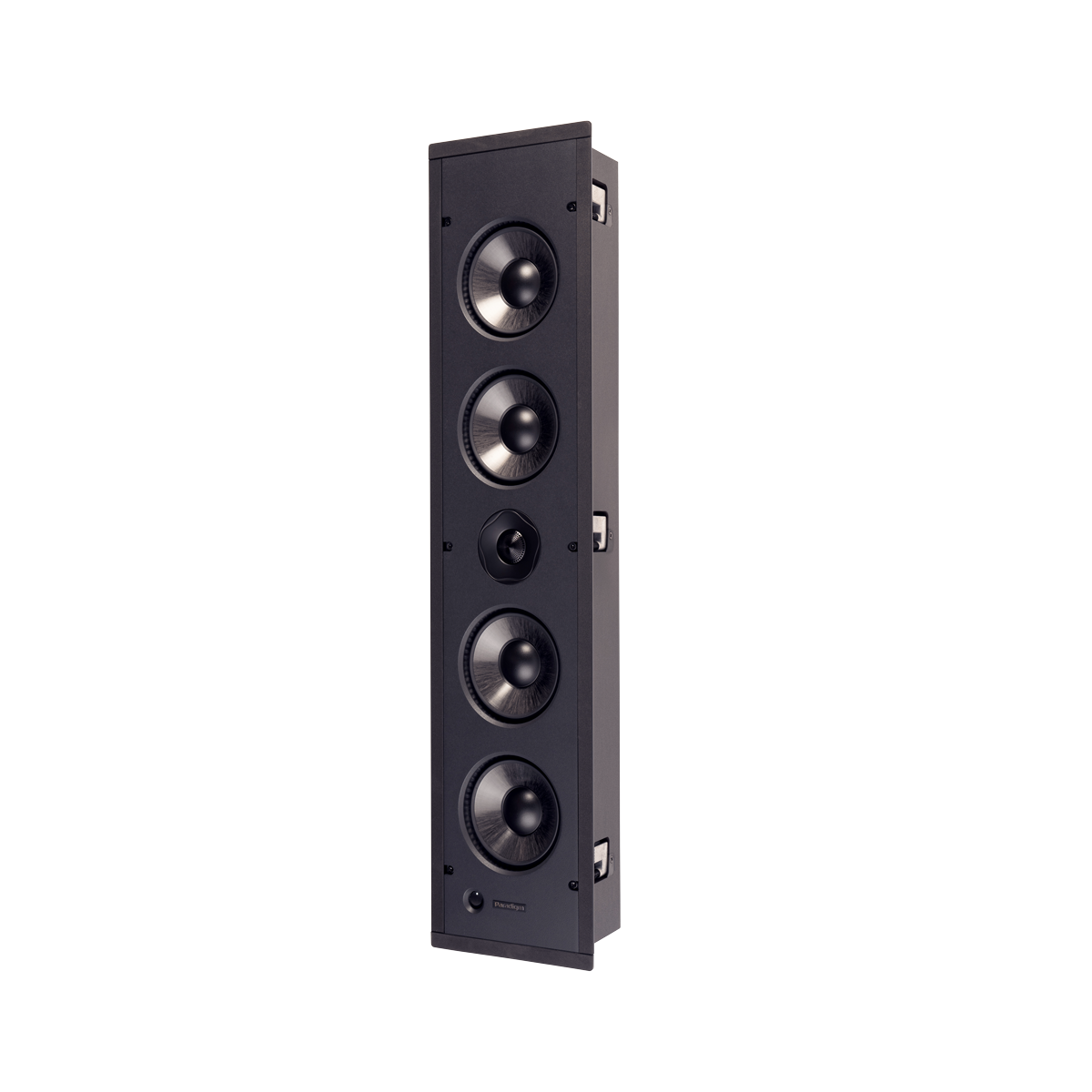

Paradigm CI Pro P3-LCR In-Wall Speaker v2 (White) overview
The Paradigm CI Pro P3-LCR In-Wall Speaker v2 (White) is a architectural LCR loudspeaker from Paradigm. The Custom Installer’s Smarter Choice.The CI PRO Series is manufactured in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality. Mirror Edge Networks can confirm system matching, amplification, placement and room requirements before supply.
Key benefits
- Engineered by Paradigm for detailed, dynamic music and cinema reproduction
- Purpose-built for discreet installation without compromising system performance
- Suitable for professionally planned stereo or home cinema systems
- Product selection, installation planning and calibration support from Mirror Edge Networks
Technical specifications
| DESIGN | 3-driver, dual passive radiators, 2-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System |
|---|---|
| CROSSOVER | 2nd-order electro-acoustic at 2.2 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±3 dB from 86 Hz – 22 kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±3 dB from 86 Hz – 19 kHz |
| HIGH FREQUENCY DRIVER | 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology |
| PASSIVE RADIATORS | Two 5.5” (13.9cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets |
| MID/BASS FREQUENCY DRIVER | Two 5.5” (13.9cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets |
| SENSITIVITY ROOM / ANECHOIC | 93 dB / 90 dB |
| LOW FREQUENCY EXTENSION | 66 Hz |
| SUITABLE AMPLIFIER POWER RANGE | 15-120 W |
| MAXIMUM INPUT POWER | 90 W |
| IMPEDANCE | Compatible with 8 ohms |
| CUT-OUT DIMENSIONS | 31” x 6-5/8” (78.7cm x 16.8cm) |
| MINIMUM MOUNTING DEPTH / (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) | 3-7/8” (9.8cm) |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | 32” x 7-5/8” x 4-1/8” (81.3cm x 19.4cm x 10.5cm) |
| WEIGHT | 19.0 lbs (6.8 kg) |
| FINISHES | White, paintable grille, black speaker |
System design and installation
Final performance depends on appropriate amplification, placement, room acoustics and calibration. Mirror Edge Networks will confirm compatibility, finish availability and the complete system configuration before supply.
