Description

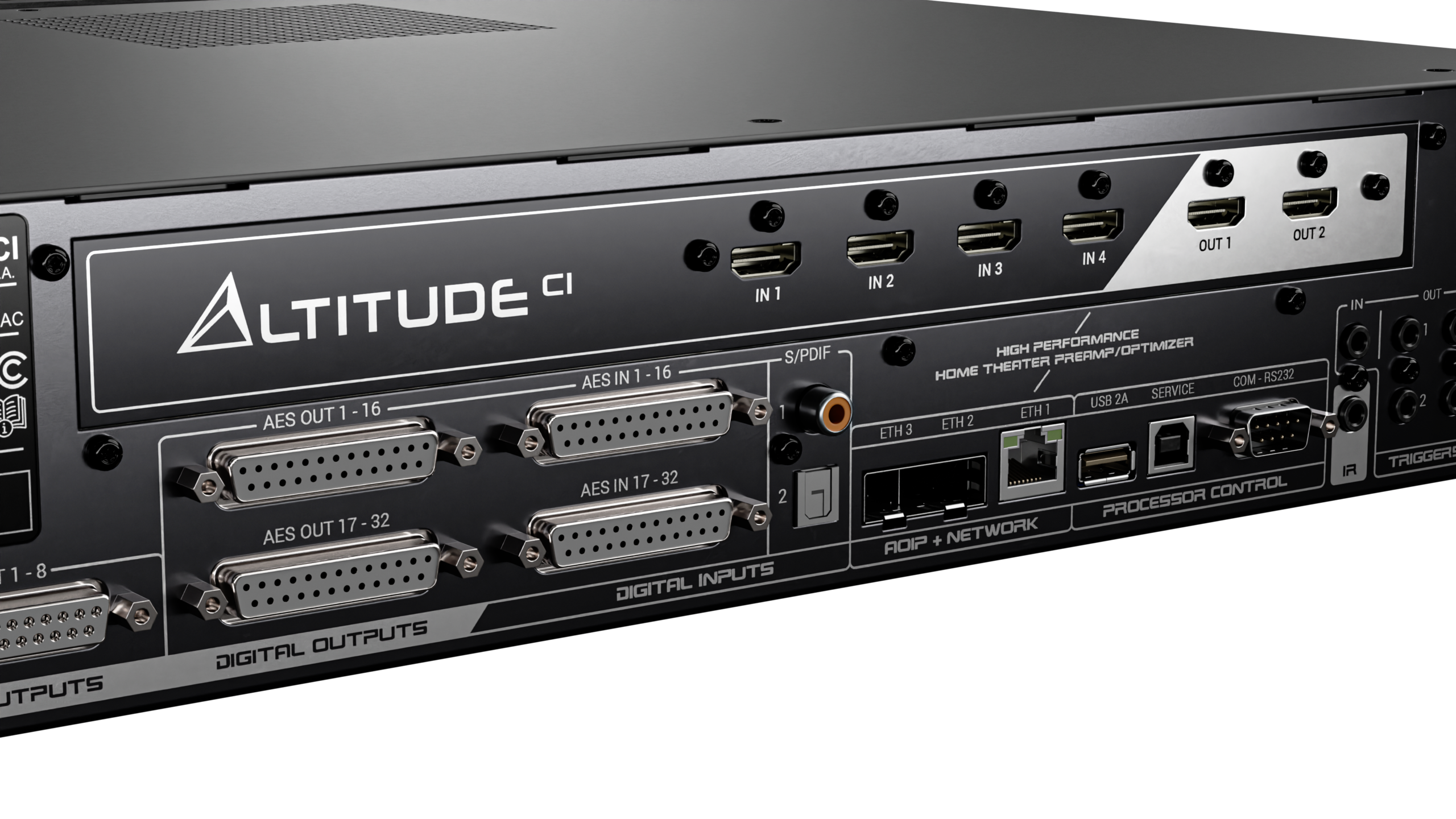

Trinnov Audio Altitude CI overview
Trinnov Audio Altitude CI is a software-defined immersive audio processor combining Trinnov Optimizer, 3D Remapping and flexible system routing for reference home cinema.
Key features
- Trinnov Optimizer room and loudspeaker calibration
- 3D Remapping and WaveForming support
- Dolby Atmos, DTS:X Pro and Auro-3D decoding
- Native Dante and AES67 audio-over-IP
Technical specifications
| Product type | Scalable immersive AV processor |
|---|---|
| Channel count | 8–32 outputs in 2-channel steps |
| Processing | 64-bit floating point; up to 192 kHz depending on channel count |
| HDMI | 4 inputs / 2 outputs; HDMI 2.1, HDCP 2.3, 40 Gbps |
| Video | Up to 4K120 or 8K60; HDR10/10+, Dolby Vision and HLG |
| AoIP | Dante and AES67, up to 32 input/output channels |
| AES/EBU | Up to 32 inputs and 32 outputs |
| Analogue outputs | 8 balanced via DB25 |
| Form factor | 2U rack-mountable |
| Control | Web/app UI, RS-232, IR, automation drivers and remote management |
Official or authorised-distributor Trinnov Audio product information
System design considerations
Final selection should account for room dimensions, sightlines, projector throw and brightness, speaker placement, signal routing, ventilation, control integration and calibration. Product configuration, finish and regional availability must be confirmed before order.
Ordering and support
Pricing is intentionally not displayed for this specialist or configurable product. Please request a quotation so Mirror Edge Networks can confirm the required configuration, current availability, installation requirements and system compatibility.
