Trinnov Audio Amplitude 16 overview

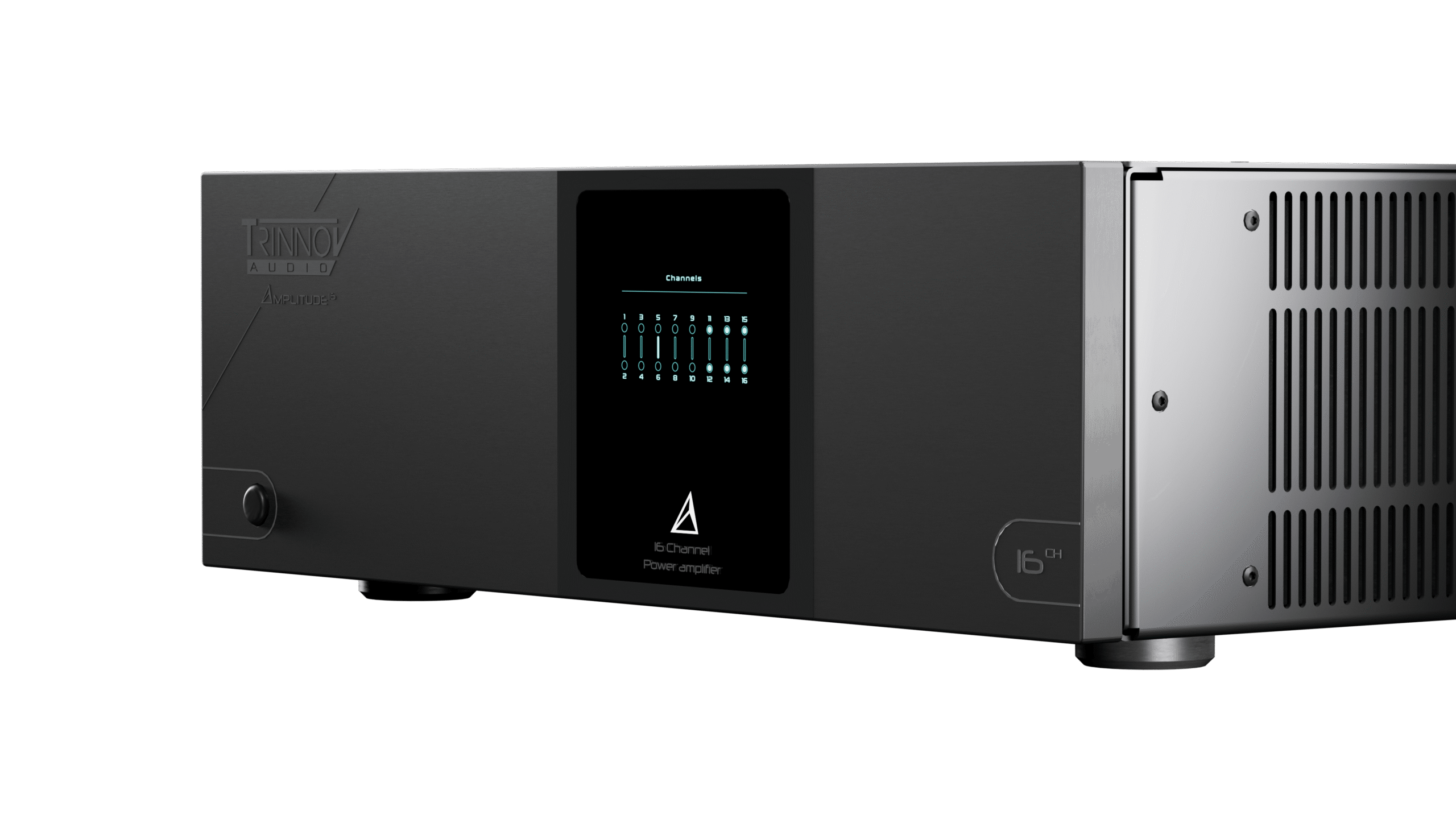

Trinnov Audio Amplitude 16 is a reference 16-channel power amplifier engineered for high-channel-count immersive cinema systems and gain-matched integration with Trinnov processors.
Key features
- 16-channel Class-D amplification
- Bridgeable channels for higher-power requirements
- Optional Dante audio-over-IP input board
- Gain-matched to the Altitude processor family
Technical specifications
| Product type | 16-channel power amplifier |
|---|---|
| Power, one channel at 8 ohms | 200 W |
| Power, one channel at 4 ohms | 400 W |
| Bridged power at 8 ohms | 800 W |
| Bridged power at 4 ohms | 1,000 W |
| Total output, 230 V | 3,200 W all channels driven |
| Frequency response | 20 Hz–20 kHz, +0/−0.6 dB |
| Signal-to-noise ratio | 126 dB A-weighted |
| Inputs | 16 balanced analogue channels via dual DB25; optional Dante |
| Gain | 16 dB single-ended / 22 dB bridged |
Official or authorised-distributor Trinnov Audio product information
System design considerations
Final selection should account for room dimensions, sightlines, projector throw and brightness, speaker placement, signal routing, ventilation, control integration and calibration. Product configuration, finish and regional availability must be confirmed before order.
Ordering and support
Pricing is intentionally not displayed for this specialist or configurable product. Please request a quotation so Mirror Edge Networks can confirm the required configuration, current availability, installation requirements and system compatibility.
