Description

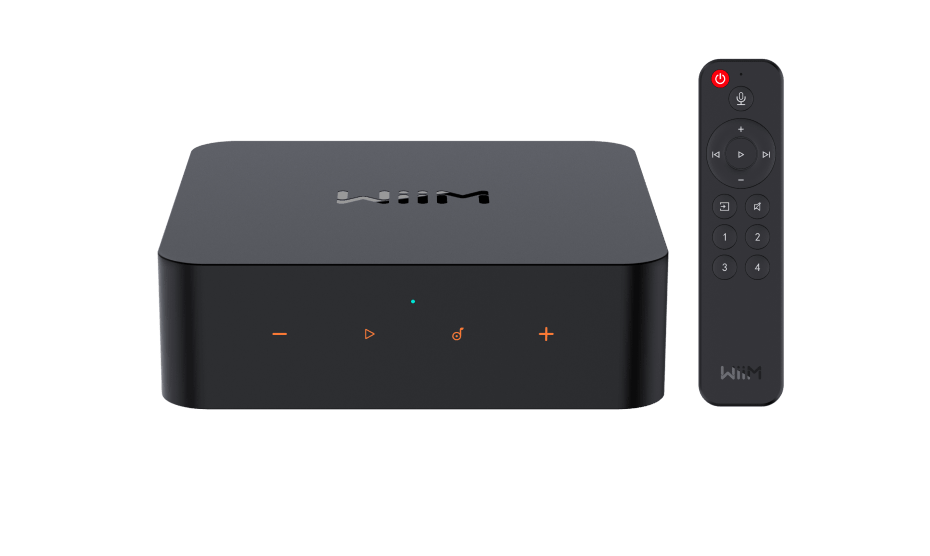

WiiM Pro Plus overview
The WiiM Pro Plus is a audiophile network music streamer / digital preamplifier for adding high-resolution streaming, multi-room playback and app-based control to an existing audio system.
Key features
- High-resolution music streaming with broad service support
- Flexible analogue and digital system connectivity
- Multi-room playback through the WiiM ecosystem
- App control, EQ and room-aware setup tools
Technical specifications
| Product type | Audiophile network music streamer / digital preamplifier |
|---|---|
| D/A conversion | AKM AK4493SEQ; 120 dB SNR and 0.00032% THD+N manufacturer ratings |
| Maximum playback resolution | Up to 24-bit / 192 kHz through supported paths |
| Audio inputs | RCA analogue line and optical digital input |
| Audio outputs | RCA analogue, optical digital and coaxial digital output |
| Network and Bluetooth | Dual-band Wi-Fi 5, 10/100 Ethernet and Bluetooth 5.1 |
| Streaming protocols | AirPlay 2, Google Cast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA and Roon Ready |
| Control | WiiM Home app, capacitive touch controls and supplied voice remote |
| Equalisation | Graphic and parametric EQ with presets; feature set varies by firmware |
| Power | External DC supply |
| Dimensions | 140 × 140 × 42 mm |
| Weight | 400 g |
Official WiiM product information
System design considerations
Final selection should account for the existing amplifier or active loudspeakers, analogue and digital source requirements, television connection, network reliability, local storage, supported services and formats, equipment ventilation, automation and professional system setup.
Request a quote
Public pricing is intentionally not displayed for this range. Mirror Edge Networks can confirm current South African availability, configuration, finish, system compatibility and installation requirements.
