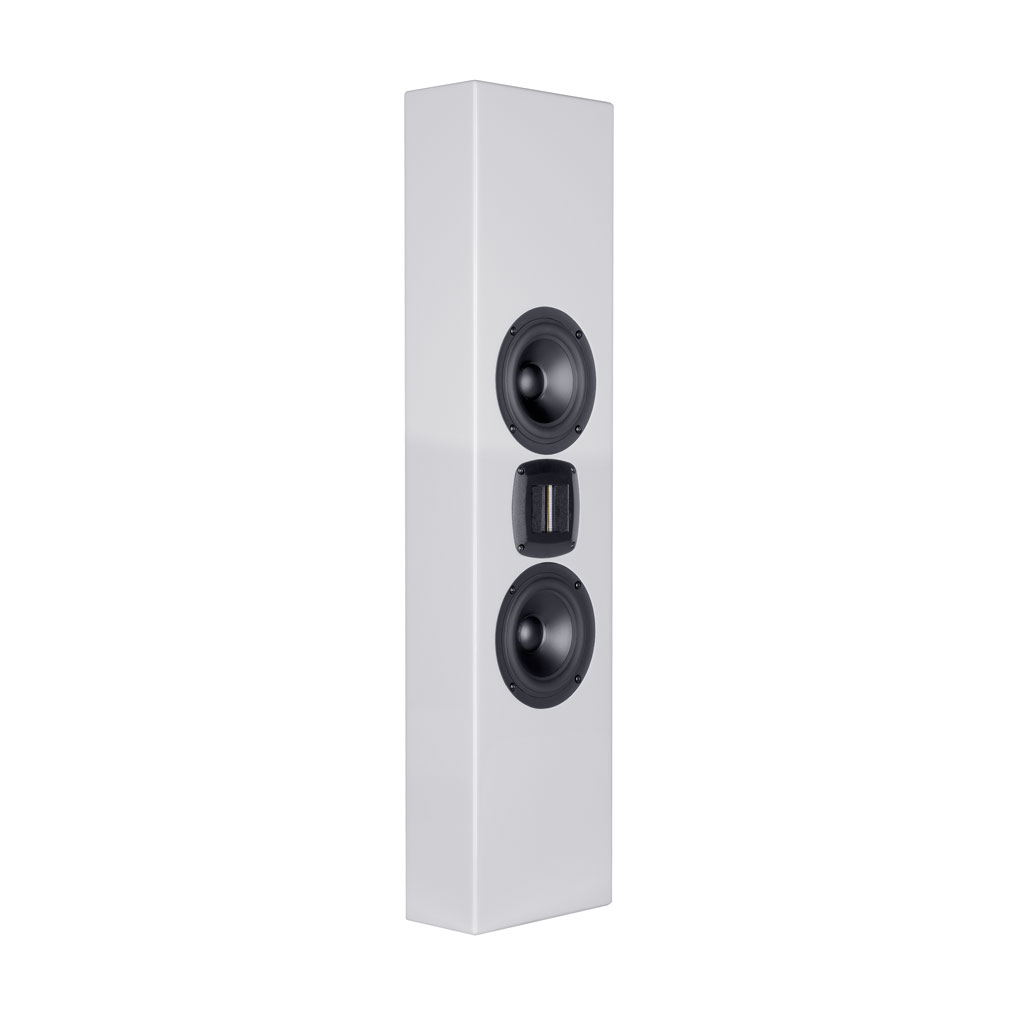

Wisdom Audio Insight Series P4m overview
The Wisdom Audio Insight Series P4m is a planar-magnetic loudspeaker system from Wisdom Audio. Compact in size, the P4m takes our Insight Series to the next level, but in a product that can be mounted on a wall or placed on a shelf top. The Insight Series P4m includes a new rotatable planar magnetic driver – and two robust 5” woofers for low distortion, high-resolution sound and a superior dynamic range. Product selection, amplification, processing, placement and acoustic integration should be confirmed as part of the complete system design.
Key benefits
- Engineered for premium private cinema and high-performance music systems
- Professional system matching for coverage, output and room volume
- Designed for integration with Wisdom Audio loudspeakers, subwoofers and electronics
- Installation and calibration planning available from Mirror Edge Networks
Technical specifications
| Frequency Response | 50Hz – 20kHz |
|---|---|
| Impedance | 6 ohms |
| Sensitivity | 89 dB |
| Crossover Frequency | 650 Hz |
| Dispersion (Horizontal x Vertical, -6dB) | 70° x 40° |
| Recommended Amplifier Power | 50-200W |
| Max SPL (1 Meter) | 112 dB |
| Shipping Weight | 25 lbs. (11.3 kg) |
| Dimensions With Grille HxWxD | 33.150″ x 8.07″ x 4.661″ (84.2cm x 20.5cm x 11.84cm) |
| Dimensions Without Grille HxWxD | 33.150″ x 8.07″ x 4.134″ (84.2cm x 20.5cm x 10.5cm) |
System design and installation
Wisdom Audio systems require appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, finish options and the complete system configuration before supply.
Mirror Edge Networks support
Wisdom Audio prices are not displayed online. Every Wisdom Audio product is supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
