Description

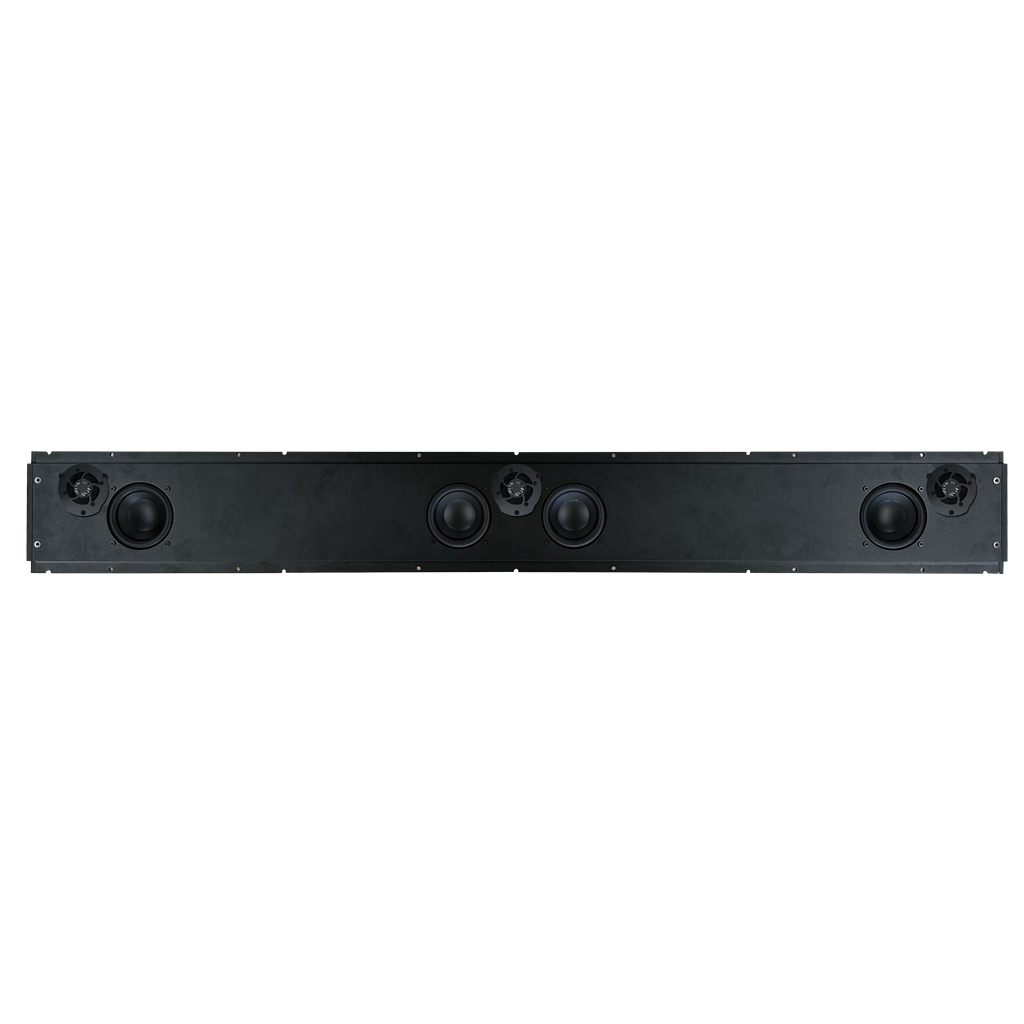

Wisdom Audio Insight Series P7m-LCR Soundbar overview
The Wisdom Audio Insight Series P7m-LCR Soundbar is a planar-magnetic loudspeaker system from Wisdom Audio. The P7m-LCR was specifically designed to avoid the compromises inherent in other conventional soundbar "custom length" designs, so you will not have to give up any sound quality just to have it match the width of your TV. Product selection, amplification, processing, placement and acoustic integration should be confirmed as part of the complete system design.
Key benefits
- Engineered for premium private cinema and high-performance music systems
- Professional system matching for coverage, output and room volume
- Designed for integration with Wisdom Audio loudspeakers, subwoofers and electronics
- Installation and calibration planning available from Mirror Edge Networks
Technical specifications
| Frequency Response | 80Hz – 20kHz +/- 3dB |
|---|---|
| Low Frequency Extension | 54hz (-10dB) |
| Recommended High Pass Crossover | 100Hz 24dB Linkwitz Riley Crossover |
| Impedance | Center CH = 4 ohms; Left & Right CH’s = 8 ohms |
| Sensitivity | 80dB 2.83V @ 1m |
| Coverage Angle Horizontal x Vertical (-6db) | Center = 100° x 110°; Left & Right Ch’s = 110° x110° |
| Net Weight (Max weight at largest TV size) | 31.5 lbs |
| Recommended Minimum Amplifier | 75 Watts |
| Maximum Continuous Power Handling | 200 Watts |
| TV Sizes | 65″ to 77″ diagonal TV sizes nominal |
| Min – Max Length | Minimum width is 56.4” (1433mm), Maximum width is 70.4” (1788mm) |
| Depth with Optional Wall Mount | 3.82” (97.2mm) |
| Depth with Optional VESA TV Mount | 3.95” (100.4mm) |
| Height | 7.25″ (184mm) |
| Amplifier Channels Needed | 3 |
System design and installation
Wisdom Audio systems require appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, finish options and the complete system configuration before supply.
Mirror Edge Networks support
Wisdom Audio prices are not displayed online. Every Wisdom Audio product is supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
