Description
Wisdom Audio LS3m overview

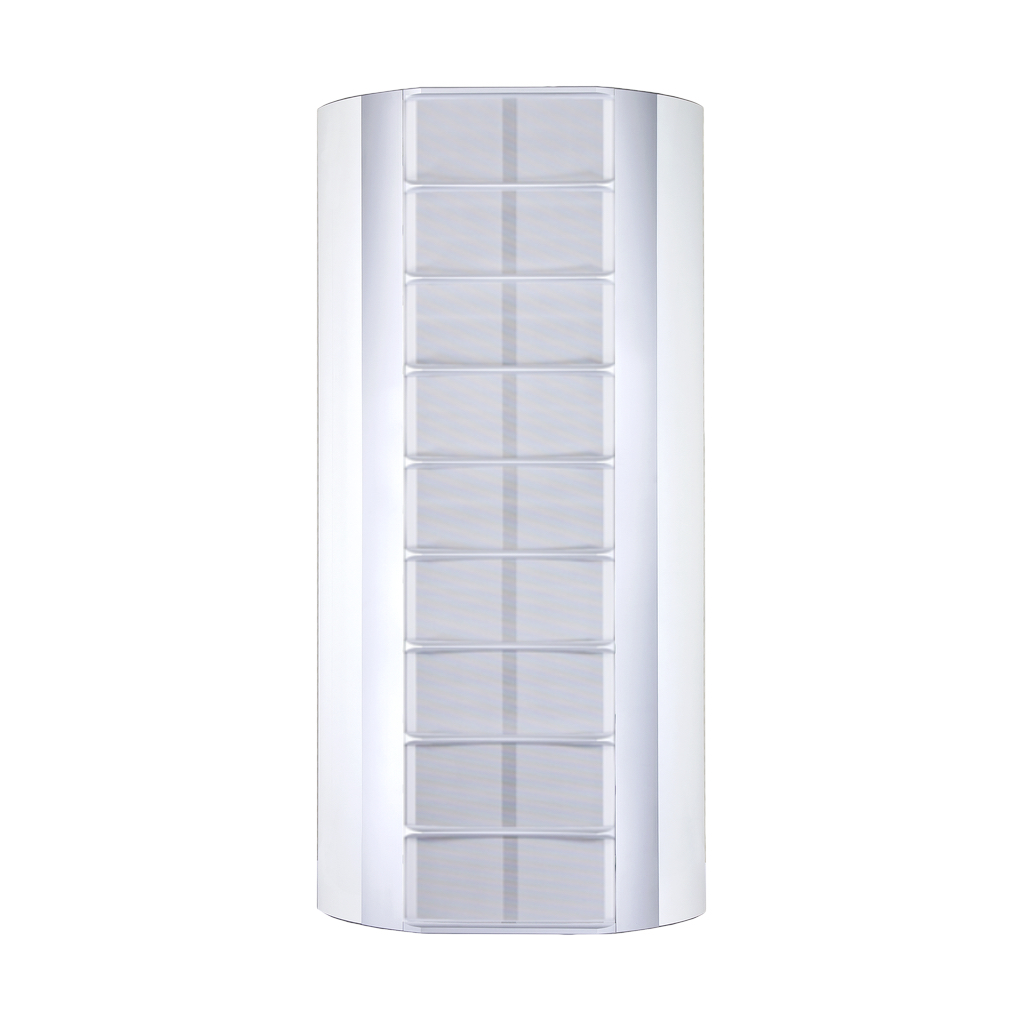

The Wisdom Audio LS3m is a planar-magnetic loudspeaker system from Wisdom Audio. The Wisdom Series LS3m is the latest planar magnetic thin-film technology and represents an uncompromised engineering effort to achieve the ultimate in music and film sound reproduction. With 60” of Planar Line Source, it is ideally suited for installation behind an acoustically transparent screen, as a main speaker or surround. Product selection, amplification, processing, placement and acoustic integration should be confirmed as part of the complete system design.
Key benefits
- Engineered for premium private cinema and high-performance music systems
- Professional system matching for coverage, output and room volume
- Designed for integration with Wisdom Audio loudspeakers, subwoofers and electronics
- Installation and calibration planning available from Mirror Edge Networks
Technical specifications
| Frequency Response | 80Hz – 20kHz ± 2dB relative to the target curve |
|---|---|
| Impedance, Tweeter | 5.6 ohms |
| Impedance, Midrange/Bass | 5.6 ohms |
| Sensitivity | 98 dB / 2.83 V / 1m |
| Shipping Weight | 435 lbs. (198 kg) |
| Dimensions HxWxD | 60.52” x 28.5” x 11.83” (153.7cm x 72.4cm x 30.5cm) |
System design and installation
Wisdom Audio systems require appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, finish options and the complete system configuration before supply.
Mirror Edge Networks support
Wisdom Audio prices are not displayed online. Every Wisdom Audio product is supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
