Description

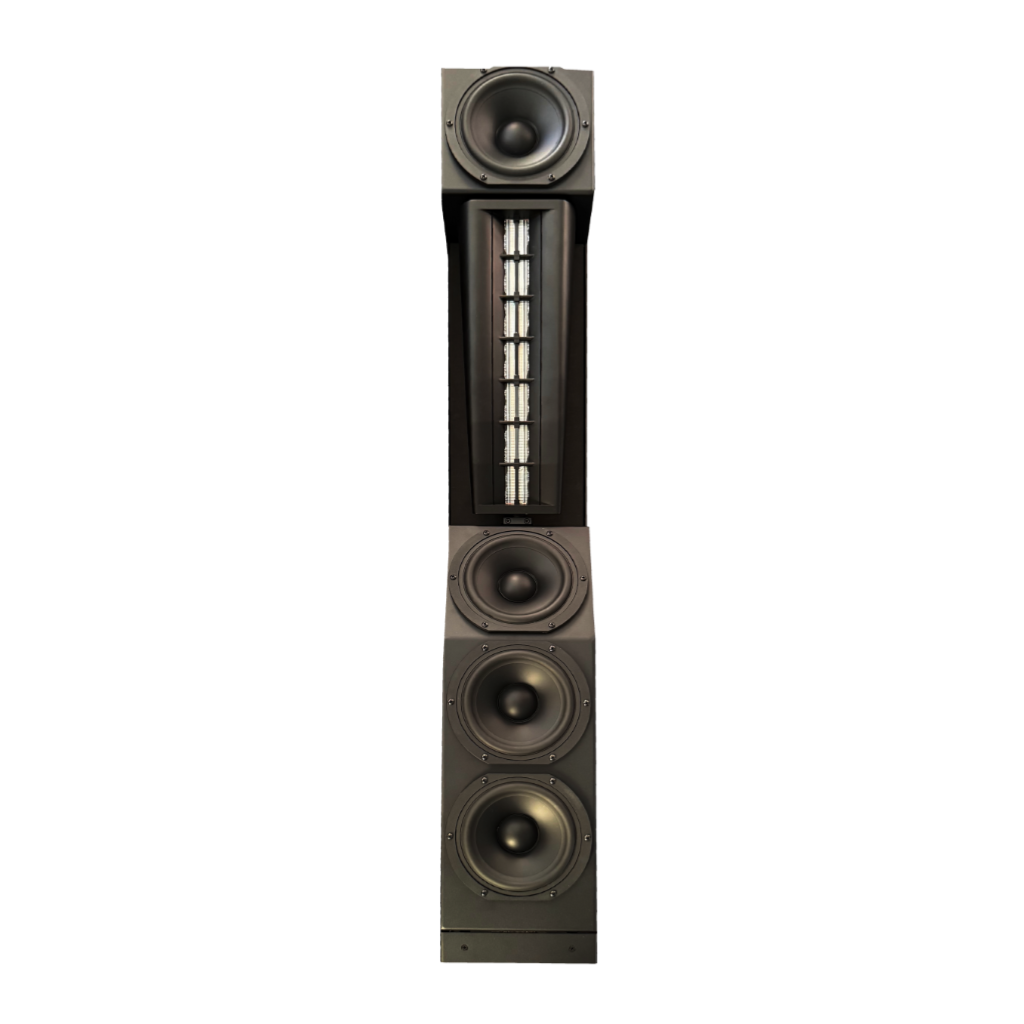

Wisdom Audio Sage Cinema VCA16 overview
The Wisdom Audio Sage Cinema VCA16 is a planar-magnetic loudspeaker system from Wisdom Audio. The Line 2 features the award-winning Sage 24” Planar Magnetic Drivers, and six long linear excursion, high-output woofers. It delivers a new level of power and dynamics, the key to the most demanding motion picture sound reproduction and live music experiences. Product selection, amplification, processing, placement and acoustic integration should be confirmed as part of the complete system design.
Key benefits
- Engineered for premium private cinema and high-performance music systems
- Professional system matching for coverage, output and room volume
- Designed for integration with Wisdom Audio loudspeakers, subwoofers and electronics
- Installation and calibration planning available from Mirror Edge Networks
Technical specifications
| Frequency Response | 60Hz – 20 kHz ± 3dB [40Hz – 25 kHz +3dB/-6dB] |
|---|---|
| Impedance | 6 Ohms |
| Power Handling, Continuous | 400 Watts |
| Power Handling, Peak | 800 Watts |
| Max SPL @ 1m | 117dB Program / 123dB Peak |
| Coverage Angle Horizontal (-6dB) | 120 degrees |
| Coverage Angle Vertical (-6dB) | Line Height with -20 degree curve |
| Coverage Angle Vertical @ 1m Refence Distance (-6dB) | 75 degrees |
| Reference "on-Axis" Vertical Angle | -7.5 degrees |
| Net Weight | 32 lbs (14.5kg) |
| Shipping Weight | 42 lbs (19 kg) |
| Dimensions HxWxD | 48″ x 7.75″ x 5.77″ (1219.2mm x 196.9mm x 146.6mm) |
System design and installation
Wisdom Audio systems require appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, finish options and the complete system configuration before supply.
Mirror Edge Networks support
Wisdom Audio prices are not displayed online. Every Wisdom Audio product is supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
