Description
Wisdom Audio Sage Series iCS7a overview

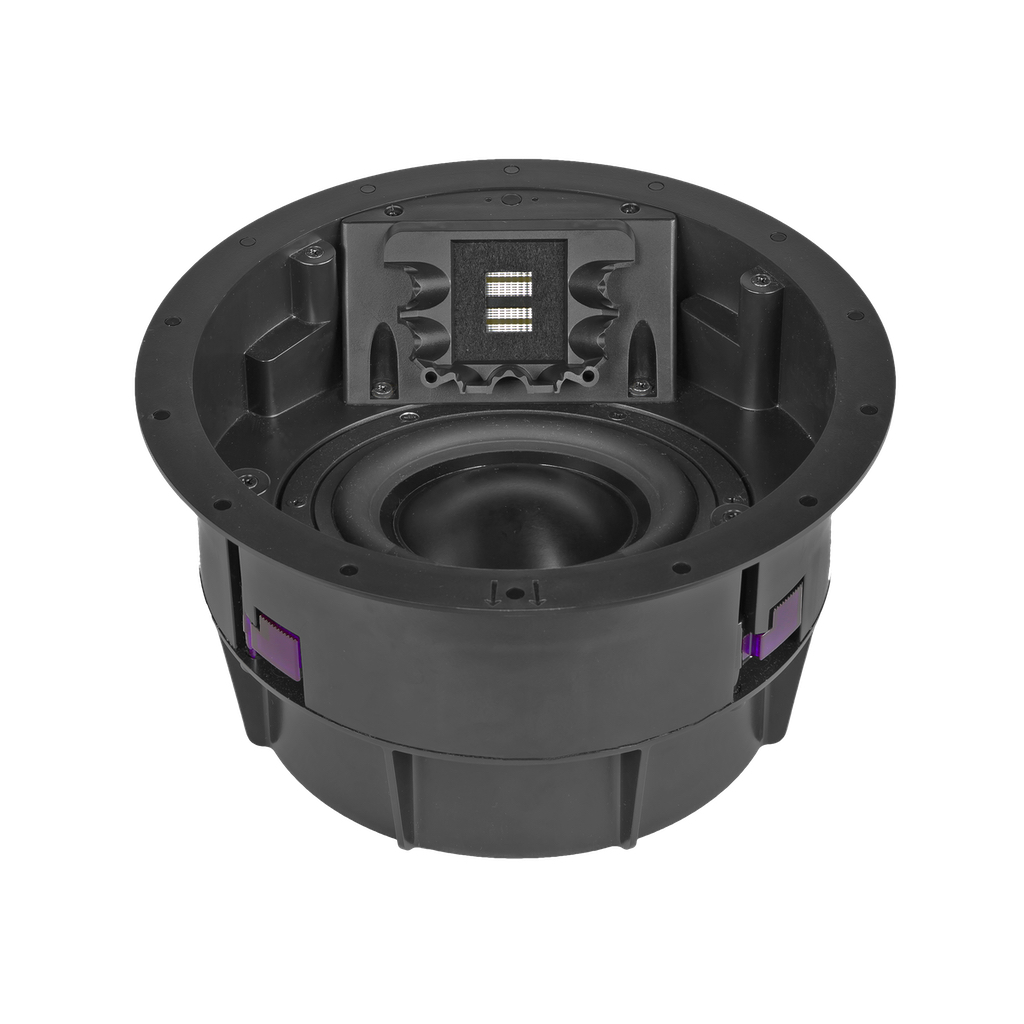

The Wisdom Audio Sage Series iCS7a is a planar-magnetic loudspeaker system from Wisdom Audio. The Sage Series iCS7a in-ceiling speaker is the World’s First multi-functional planar magnetic (PMD) round in-ceiling loudspeaker. Its 6-Bar PMD is completely new and is based upon Wisdom’s award-winning Sage P20 driver. Product selection, amplification, processing, placement and acoustic integration should be confirmed as part of the complete system design.
Key benefits
- Engineered for premium private cinema and high-performance music systems
- Professional system matching for coverage, output and room volume
- Designed for integration with Wisdom Audio loudspeakers, subwoofers and electronics
- Installation and calibration planning available from Mirror Edge Networks
Technical specifications
| Frequency Response | 57Hz – 20kHz +/- 3 -6dB at 50Hz |
|---|---|
| Impedance | 4.5 ohms |
| Sensitivity | 87dB |
| Minimum Recommended Power | 50 Watts |
| Max Continuous Power Handling | 300 Watts |
| Peak Power | 600 Watts |
| Round Grille O.D. | 11.57″ (29.4 cm |
| Square Grille O.D. | 11.57″ (29.4 cm) |
| Speaker Depth | 6.473″ (16.4 cm) from the back of mounting flange to back box |
| Cutout Dimension | 10-1/8″ (25.9 cm) |
| Product Weight | 11 lbs. (5.0 kg) |
| Shipping Weight | 16 lbs. (7.3 kg) |
| Dimensions HxWxD | 11.57” x 11.57” x 6.57” (29cm x 29cm x 16.4cm) |
System design and installation
Wisdom Audio systems require appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, finish options and the complete system configuration before supply.
Mirror Edge Networks support
Wisdom Audio prices are not displayed online. Every Wisdom Audio product is supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
