Description
ASCENDO THE19 SUB PRO PASSIVE SEALED SHALLOW overview

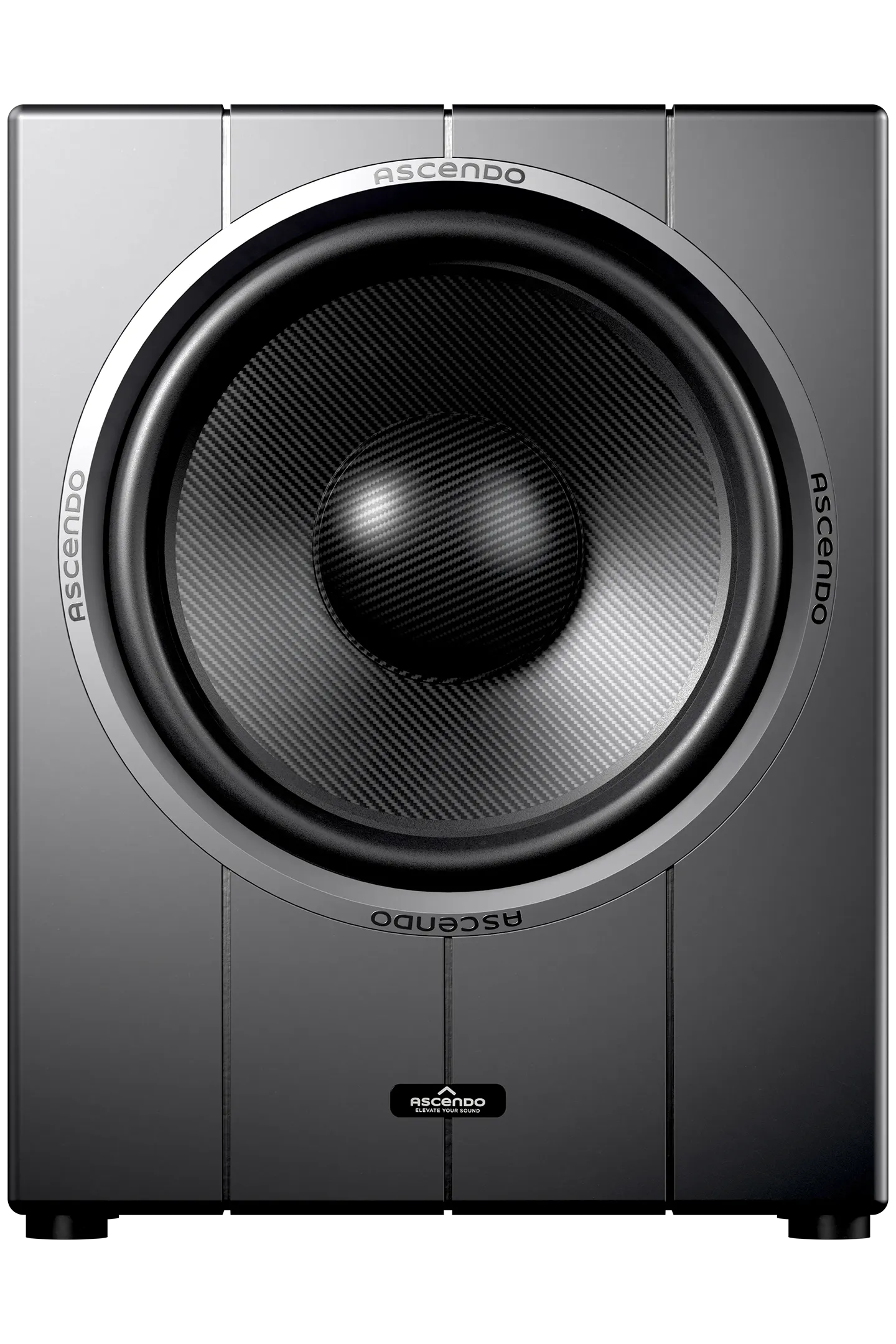

The ASCENDO THE19 SUB PRO PASSIVE SEALED SHALLOW is passive cinema subwoofer engineered for controlled directivity, high dynamic capability and integration into professionally designed immersive audio systems. Product selection, amplification, DSP, placement and acoustic integration should be determined as part of the complete room design.
Key benefits
- Engineered specifically for high-performance cinema and immersive audio
- Professional system matching for output, coverage and room volume
- Designed for integration with ASCENDO amplification, DSP and bass systems
- Installation planning available from Mirror Edge Networks
Technical specifications
| Speaker Type | 19-inch forward-firing driver with an advanced carbon-fiber/Rohacell® composite sandwich cone, neodymium motor, and 4-inch ultra-high-temperature voice coil |
|---|---|
| Principle | Sealed |
| Passive | Active | Passive |
| XMAX | 22 mm one-way linear excursion; 44 mm peak-to-peak, with the voice coil remaining within the homogeneous magnetic field for linear, low-distortion operation |
| Power Handling | 2,500 W |
| Sensitivity | 93 dB SPL / 1 W / 1 m, half-space / 2π |
| Nominal Impedance | 4 Ω |
| Directivity | Nominally omnidirectional within the intended operating range |
| Input Terminal | 4-conductor Phoenix connector, suitable for 12 AWG / 3.3 mm² cable |
| Dimensions (W × H × D) mm — without grille | 537 × 692 × 265 mm Height without feet: 677 mm |
| Net Weight | 36 kg | 79.37 lb |
| Enclosure | Internally braced MDF |
| Finish | Satin matte black |
| Mounting | Floorstanding with feet |
System design and installation
This product requires appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, availability and the complete system configuration before supply.
Mirror Edge Networks support
ASCENDO products are supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
