Description

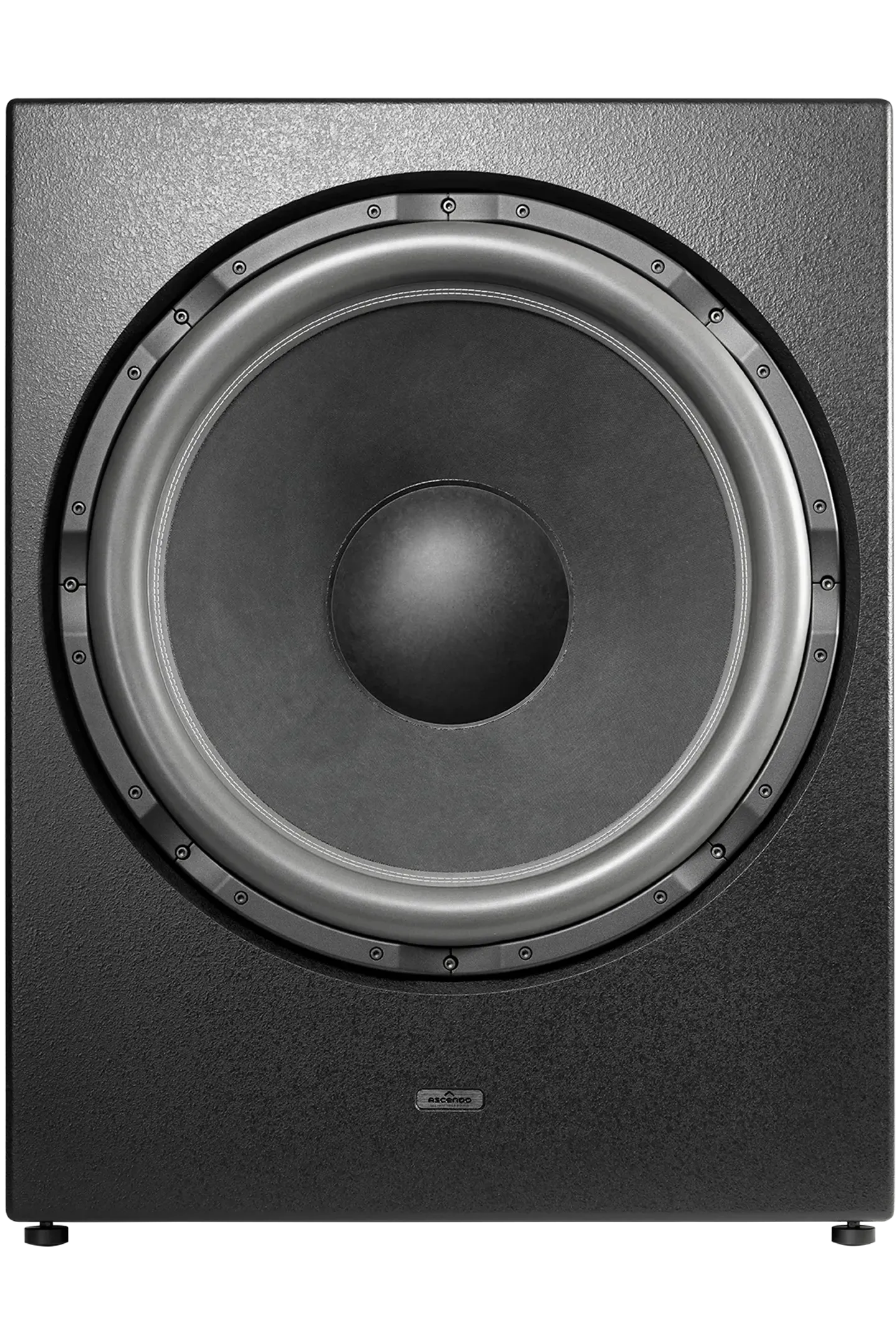

ASCENDO The32 SUB Pro 32" Passive Sealed Infra-Woofer (Black) overview
The ASCENDO The32 SUB Pro 32" Passive Sealed Infra-Woofer (Black) is passive cinema subwoofer engineered for controlled directivity, high dynamic capability and integration into professionally designed immersive audio systems. Product selection, amplification, DSP, placement and acoustic integration should be determined as part of the complete room design.
Key benefits
- Engineered specifically for high-performance cinema and immersive audio
- Professional system matching for output, coverage and room volume
- Designed for integration with ASCENDO amplification, DSP and bass systems
- Installation planning available from Mirror Edge Networks
Technical specifications
| Speaker Type | 32” forward-firing woofer with dual 6.5” voice coil |
|---|---|
| Principle | Sealed |
| Passive | Active | Passive |
| XMAX | 45 mm excursion each direction (90 mm linear), voice coil remaining in homogeneous magnetic field, linear and lowest distortion |
| SPL Peak (Peak / Half Space 2pi) | Measured Data 140 dB @ 32 Hz |
| Frequency Range | Measured Data (without ext. DSP) 28 Hz – 500 Hz / -3 dB 20 Hz – 500 Hz / -15 dB |
| Power Handling | 2 x 3000 W |
| Efficiency | 98 dB / 1 W/m 2 pi |
| Impedance | Dual Voice Coil, 4 Ω each |
| Directivity Horizontal x Vertical in deg° | 360° |
| Input Terminal | Neutrik NL4 MP |
| Dimensions (W/H/D) mm (Without Grille) | 950 | 1225 | 550 (Height without feet: 1200) |
| Weight | 352.74 lbs | 160 kg |
| Enclosure | Internally braced birch ply and MDF |
System design and installation
This product requires appropriate amplification, processing, mounting and calibration. Mirror Edge Networks will confirm compatibility, room requirements, availability and the complete system configuration before supply.
Mirror Edge Networks support
ASCENDO products are supplied on a Request Quote basis. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and installation requirements allow.
