MartinLogan Motion B10 overview

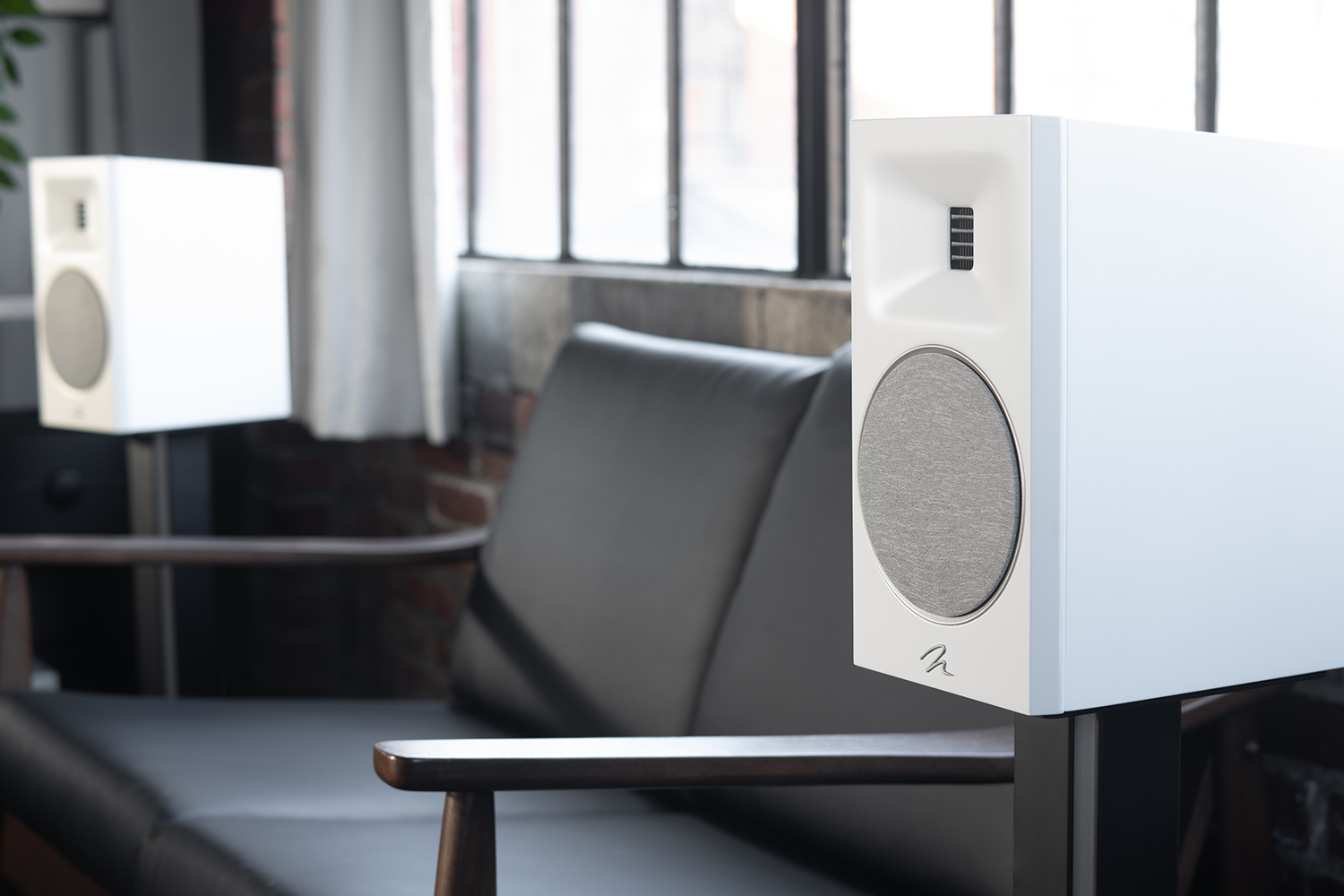

The MartinLogan Motion B10 is a passive loudspeaker from MartinLogan. Motion® B10 offers impressive performance from its Gen2 FMT and Woven Fiberglass mid-bass, delivering musicality and scale not typical of its size. Being less than 10" deep, the Motion® B10 is a practical option for placement on a shelf, desk, cabinet or other flat surface. For those desiring a stand mount solution, our optional (sold separately) STAND25 speaker stand can bolt directly into the bottom of the speaker for maximum stability. Mirror Edge Networks can confirm system matching, placement and installation requirements before supply.
Key benefits
- MartinLogan thin-film high-frequency technology for clarity and controlled dispersion
- Purpose-engineered drivers, cabinet and crossover for coherent performance
- Suitable for professionally planned stereo or home cinema systems
- Product selection, placement and calibration support from Mirror Edge Networks
Technical specifications
| Dimensions (H x W x D, with feet) | 12-1/2” x 7” x 9-3/4” / 31.8cm x 17.8cm x 24.8cm |
|---|---|
| Frequency Response | 56 Hz – 25 kHz / ± 3 dB |
| Tweeter Dispersion (horizontal x vertical) | 90° x 90° |
| Recommended Amplifier Power | 20 – 200 watts |
| Sensitivity | 92 dB |
| Impedance | 5 ohms |
| Crossover Frequency | 2,370 Hz (2-way) |
| High Frequency Driver | 1” x 1.4” (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm |
| Mid-Frequency Drivers | 5.5” (14cm) Woven Fiberglass cone with cast polymer basket. Non- resonant asymmetrical chamber format. Unibody cone construction. |
| Cabinet | Rear Ported |
| Binding Post Inputs | Custom 5-way binding posts |
| Weight | 14.5lbs / 6.6kg |
| Finish | Gloss Black, Walnut, and Satin White |
System design and installation
Final performance depends on appropriate amplification, placement, room acoustics and calibration. Mirror Edge Networks will confirm compatibility, finish availability and the complete system configuration before supply.
Mirror Edge Networks support
MartinLogan is supplied on a Request Quote basis and prices are not displayed online. Free nationwide delivery is available, typically within 3–5 business days where supplier stock and project requirements allow.
